1993 Camburg ranger build.

Here’s some progress from some Sunday!


Attachments

  • 71666757811__62837F58-0580-4D7F-9293-037ADFC810D0.jpeg
    501.6 KB · Views: 120
  • C2DA461F-A2C8-4331-A867-59D8715B7866.jpeg
    359.9 KB · Views: 81
Last edited:
Thanks! It’s been such a journey haha always more work then I expect but hey one thing at a time 😂

Hey dude, where did you get your steering kit? Or did you make it? Thanks
Sorry for the slow reply! It’s a threat motorsports kit. Makes shit easier, I made my own tie rods but the amount of time it would take to draw up a swinger and pitman arm set up didn’t add up. So I paid the man.

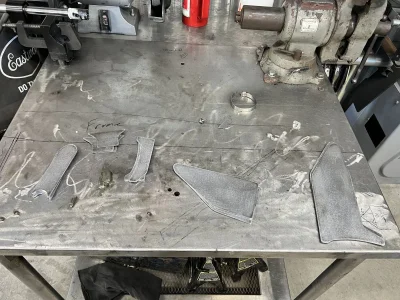

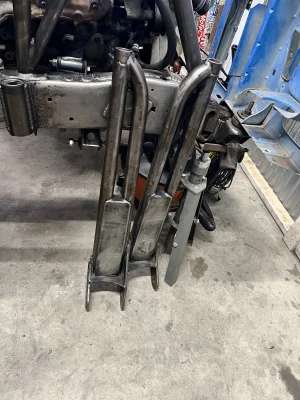

jumping around a little bit. Made some paper templates for my beams to finish those up so I can start assembling the front end. I did some serious hunting cause I wanted the Og Camburg transmission mount, radius arm hanger and extended radius arms just cause I’m OCD like that and found a set. So gonna assemble the front of the truck to see what needs to be checked off the list.

Sorry for the slow reply! It’s a threat motorsports kit. Makes shit easier, I made my own tie rods but the amount of time it would take to draw up a swinger and pitman arm set up didn’t add up. So I paid the man.
Thanks for info. I was looking at that kit. Since it was basically complete. How did you determine the bends in the tierods?
Thanks dude, progress looks rad.

Thanks for info. I was looking at that kit. Since it was basically complete. How did you determine the bends in the tierods?
Thanks dude, progress looks rad.

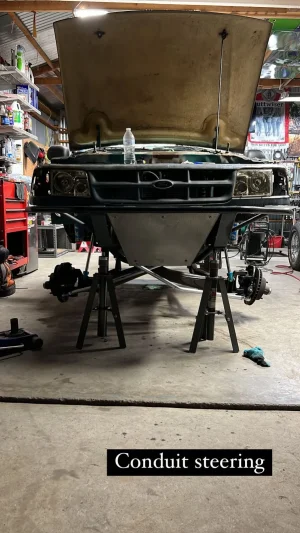

I started at ride height, I set the pit man arm to the swinger first and made sure that it was inline with the pivot. That’s your first step. So I put a piece of all thread in the pivot and through the swinger and that determined the where on the Frame I would tack for mock up. Has to be far enough forward that the link can be behind the swinger at full bump. Then I started with a piece of 1” EMT from Home Depot jacked up one beam and measures to the center of the frame to get the center of bend. started cycling the suspension at full bump and bending the tie rod as needed to clear the frame. Then I repeated that step on the passenger side and then once I got the bends down I checked the turning angle so that it doesn’t crash into the swinger and pitman arm at full lock. You might have to cut your tacks on the swinger and dial in how far forward it is. I’ll see if I have pics from when I was doing it.

Last edited:
I started at ride height, I set the pit man arm to the swinger first and made sure that it was inline with the pivot. That’s your first step. So I put a piece of all thread in the pivot and through the swinger and that determined the where on the Frame I would tack for mock up. Has to be far enough forward that the link can be behind the swinger at full bump. Then I started with a piece of 1” EMT from Home Depot and measured back from the tie rod 8” and started cycling the suspension at full bump and bending the tie rod as needed to clear the frame. Then I repeated that step on the passenger side and then once I got the bends down I checked the turning angle so that it doesn’t crash into the swinger and pitman arm at full lock. You might have to cut your tacks on the swinger and dial in how far forward it is. I’ll see if I have pics from when I was doing it.


Attachments

  • 3C90D12B-8B78-4090-BF05-70C761F72518.jpeg
    354.9 KB · Views: 63
  • C5BB8C51-D415-4175-A12C-C77B96D113C6.jpeg
    281.4 KB · Views: 67

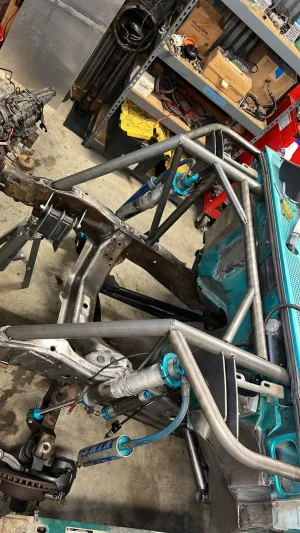

if you look back at some older pics of when I was doing the steering you will see the piece of all thread holding the swinger

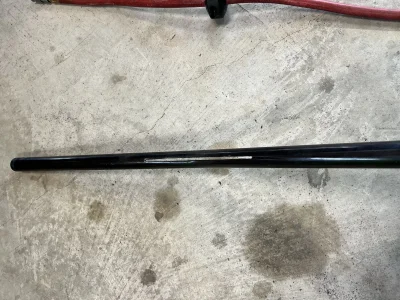

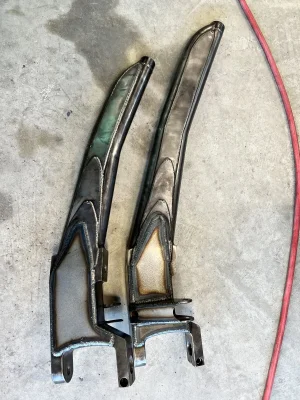

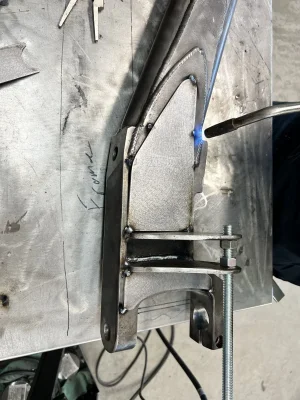

Some stuff from today. My tie rod was bent pretty sharp and my buddy Talon thought that putting a plate in it will help the bending and shear point. I’ll post a pic of it welded and polished. Can’t even tell it’s in there.


Attachments

  • IMG_3903.jpeg
    546.7 KB · Views: 55
  • IMG_3901.jpeg
    553.1 KB · Views: 50
  • IMG_3900.jpeg
    413.4 KB · Views: 56
  • IMG_3904.jpeg
    266.1 KB · Views: 62
Last edited:

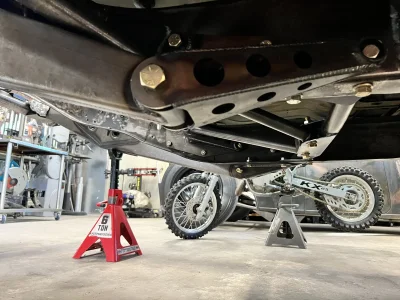

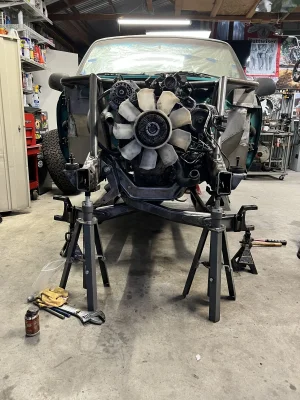

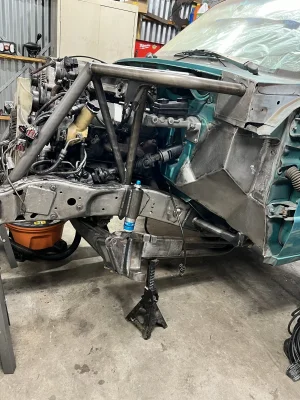

I managed to get the beams and radius arms mounted up and aligned. Waiting on hardware from McMaster but tomorrow I’ll throw the hubs and steering on there. The pitman arm is wrapped up in a blanket cooling down.


Attachments

  • IMG_3905.jpeg
    457.6 KB · Views: 56
  • IMG_3907.jpeg
    466 KB · Views: 66

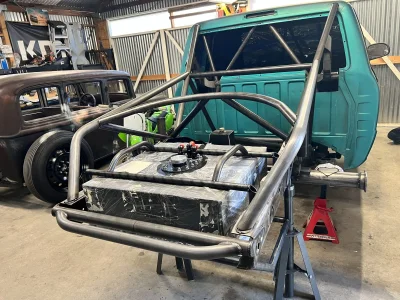

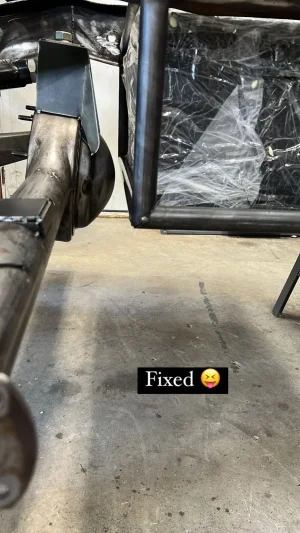

Well I moved the jack stands to the bumper and went to let the axel down and I noticed that it was gonna crash into the fuel cell cradle. I then thought well shit this is gonna get interesting. The cradle was a little too big by about 1” so I chopped and shortened that and moved the whole structure back about 1/2”. All in all it went pretty smooth and I’m actually way happier with how everything fits. I also went from a .95 1” 1/4 tube to a .120 1” tube on the cross tube.


Attachments

  • 7E9B06B4-8AE0-4F4E-B05E-A402A400903F.jpeg
    269.4 KB · Views: 50
  • 0B80240F-E0E8-4C16-8041-45E3F8FD572D.jpeg
    277.2 KB · Views: 59
  • IMG_3910.jpeg
    528.1 KB · Views: 68
