88’ Raingutter Ranger

[MTSuarez]

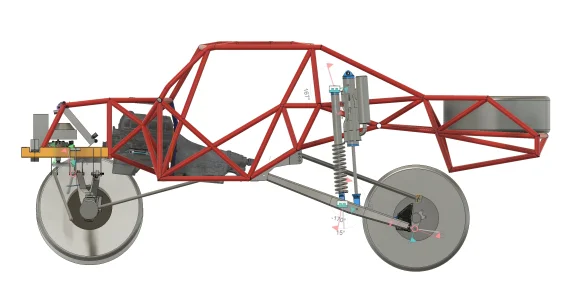

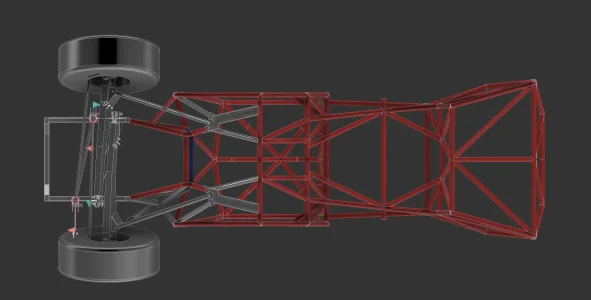

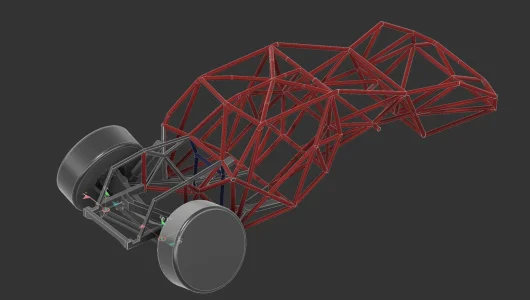

With the drivetrain placed damn near close, I spent the rest of the day locating my radius arm mounts. Kept them as long and near center as I could while keeping the middle open for ease in removing the transmission for service. Planning on finalizing/cleaning up the plate work on it in a few days. Other than adding a few more tubes to the engine bay, will do one more look over on tube interferences and send the chassis off to laser.

Been chipping at this project for the last 5 years, definitely itching to put this puzzle together. Given I already have most of the suspension/drivetrain ready, would like to see this thing rolling relatively shortly after starting. Appreciate all the help from everyone along the way.



[36Fan]

Do you plan on running a front engine plate?



[MTSuarez]

Do you plan on running a front engine plate?

I was not planning on a front plate



[36Fan]

I was not planning on a front plate

What mounts are you using?



[MTSuarez]

What mounts are you using?

Just some fabricated ones I drew up in CAD



[36Fan]

Stock block location, mid plate and trans tail mount?



[MTSuarez]

Stock block location, mid plate and trans tail mount?

I’d have to recheck but the motor is pushed back over 15”. So new motor mounts, a mid plate, and new trans tail mount.



[Pictafiedesign]

We are getting close! From Main Cab to Fuel Cell Carrier, tubes have all been normalized and got quotes back for. Working on the front frame/suspension components and currently stuck on the Motor Plate. Looking to do 3/8inch aluminum machined plate, does anyone have experience installing one? I can only find them installed but no one talks about any modifications for the engine or transmission to work with the added gap between the two. Thanks!

I'm running a 3/8 plate on mine. It's plenty strong enough. Same size Camburg runs on their TTs... You don't run the normal motor mounts with them however. You'll need a front mount to the motor as well. That way when you pull the motor you're only unbolting it from the mid plate then fully removing the front plate allowing your motor to slide forward and out. Whatever your spacing for the midplate is, you will add to your torque convertor mounts.



[MTSuarez]

I'm running a 3/8 plate on mine. It's plenty strong enough. Same size Camburg runs on their TTs... You don't run the normal motor mounts with them however. You'll need a front mount to the motor as well. That way when you pull the motor you're only unbolting it from the mid plate then fully removing the front plate allowing your motor to slide forward and out. Whatever your spacing for the midplate is, you will add to your torque convertor mounts.

Rad thanks Dave. By chance are you able to tell me what your horizontal and vertical spacing was for your pivot boxes at the frame?



[Pictafiedesign]

Rad thanks Dave. By chance are you able to tell me what your horizontal and vertical spacing was for your pivot boxes at the frame?

For the upper and lower links?



[MTSuarez]

For the upper and lower links?

Yes



[Pictafiedesign]

Yes

That all depends on what you want to do with antisquat numbers to be honest. All changes depending on what you're looking for



[MTSuarez]

That all depends on what you want to do with antisquat numbers to be honest. All changes depending on what you're looking for

Yea was just looking for something to compare to, just feel like my vertical and horizontals are more than what I see on others



[Pictafiedesign]

Yea was just looking for something to compare to, just feel like my vertical and horizontals are more than what I see on others

Let me see what mine are again I can't remember off the top of my head lol



[Turboyota]

Yea was just looking for something to compare to, just feel like my vertical and horizontals are more than what I see on others

Comparing apples to oranges to cucumbers over here, but:

the last few trucks I’ve linked were 11” vertical separation at the axle

7” vertical separation at the frame
Upper link pivot 7” aft of lower link pivot



[MTSuarez]

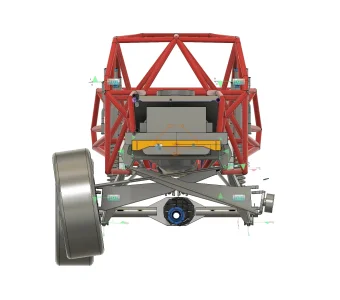

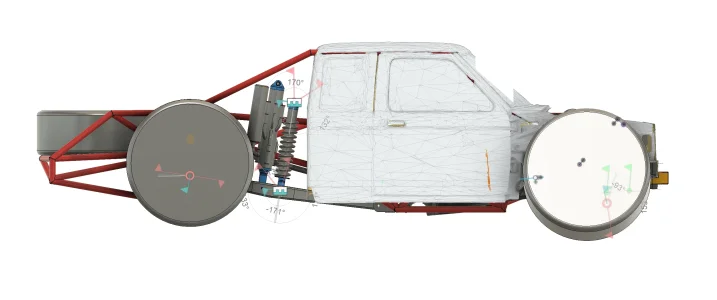

Just about ready to send the chassis off to laser. Spent the last few days altering the frame rails to accept the stock front core support, finalizing the beam mounts/swinger geometry, and fitting coolers/radiators in the massive hole where my engine used to be. Have a few small items to hit like locating the steering box, small changes to the engine cage, and possibly one more geometry change to the rear to move the lower link pivot closer to the transmission output. Went on Ebay/LMC and bought a Lund Cab Visor and a stock chrome bumper, goal is to keep it "vintage" (absolutely no Raptor glass ) Can't wait to get this on a table!



[the bodj]

This is gonna be so cool! Smart move keeping the oem core support.



[UR_Mawm69]

holyshitballs man.

seriously. shit.ballz.



[MTSuarez]

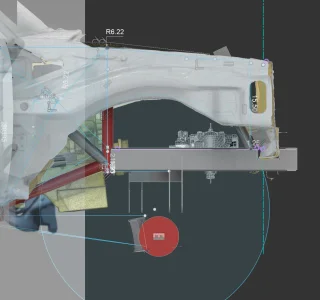

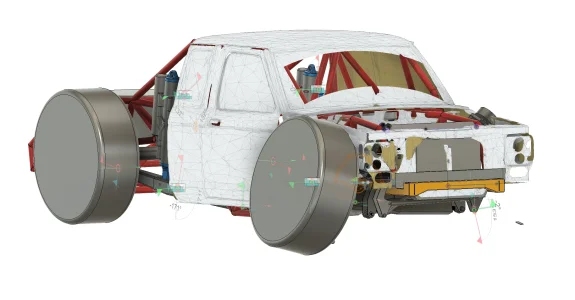

Been sitting on this most the day, looking for some input. To fit the radiator I either have to ditch the core support (already has 2 coolers mounted in it, headlights, and lets me easily locate in "space" where my fenders and hood mount to) or move it to the back of the truck (probably will still have front/rear windshield, have to plumb it all the way to the rear which I was trying to avoid). Any thoughts?
