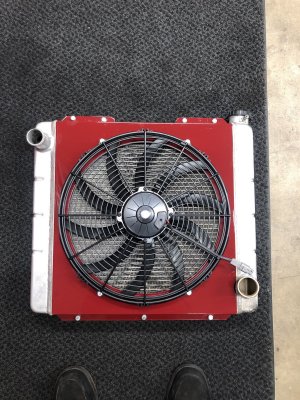

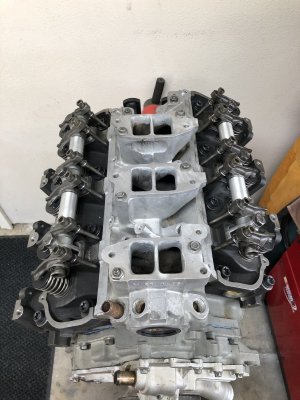

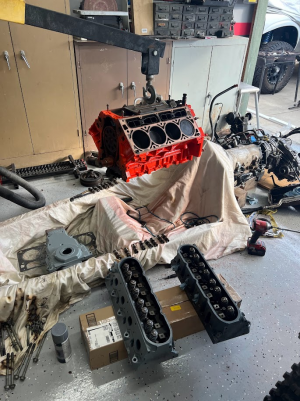

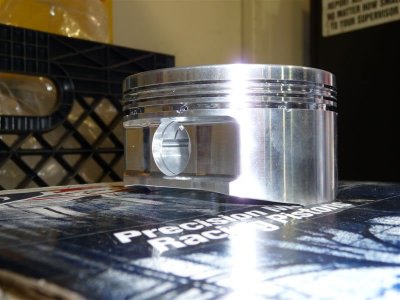

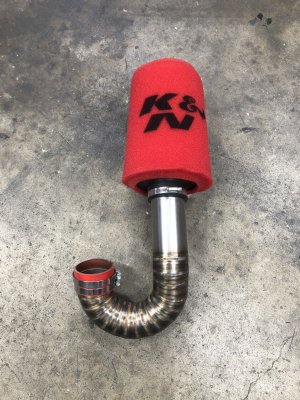

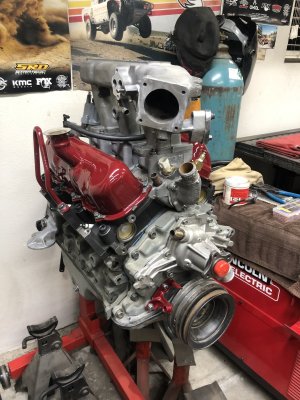

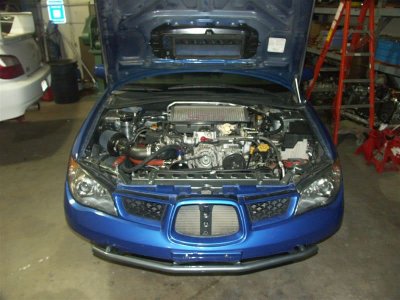

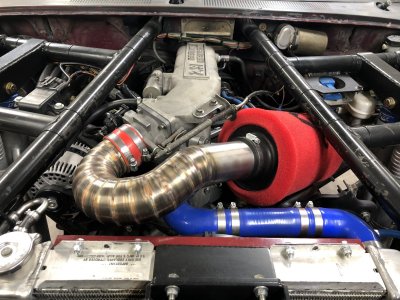

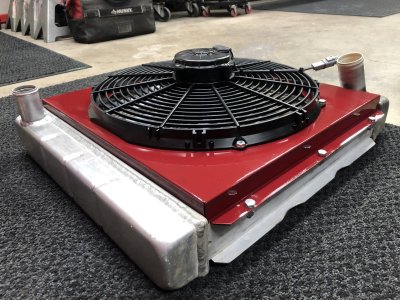

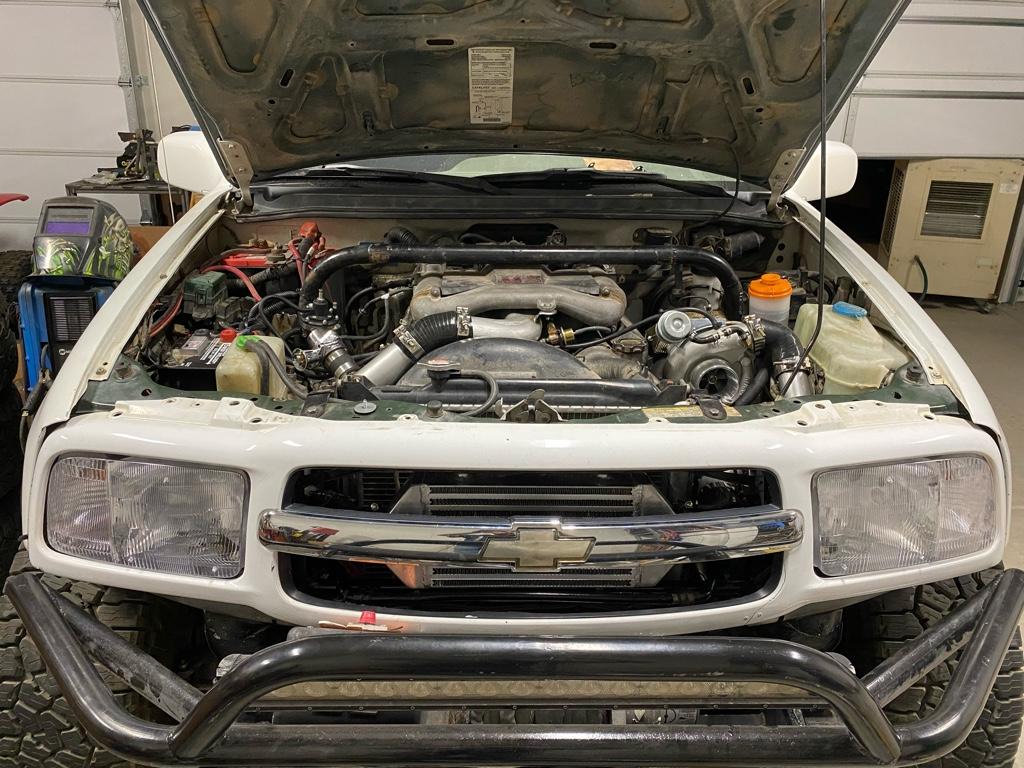

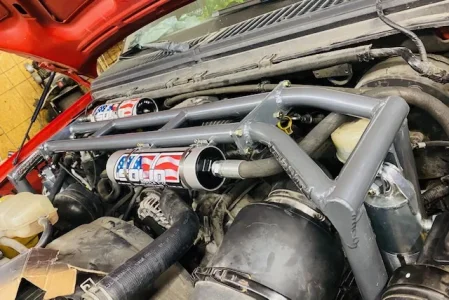

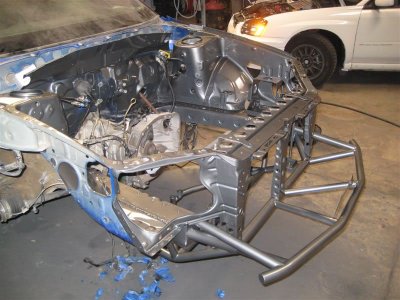

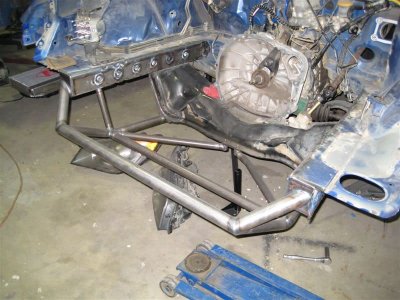

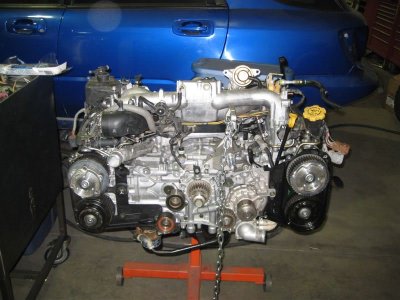

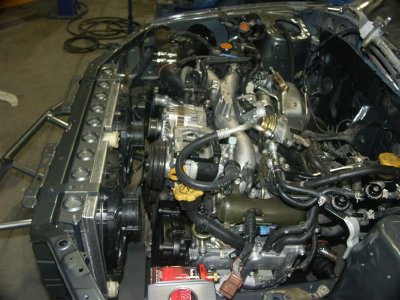

Let’s see some pics and spec of what gets your stuff movin! …… that could be interpreted wrong but you know what I’m asking . Engine swaps , trans swaps , power adders .
As for myself Iv been slowly collecting parts this past years to build and swap in a new heart for the bronco , only waiting on the final few pieces of the puzzle ( ordering engine parts during Covid has been a nightmare) .
It took me a while to commit to what I wanted build , ping ponging back and fourth between ls swap and staying with the nostalgic Windsor platform I decided to
Go ford .. for a few reasons ,1 Iv already build a few Ls and wanted to experience and experiment with a new platform , 2 I thought it would be cheaper ( it definitely isn’t ) and ,3 I really want to maintain as much nostalgia with the truck as possible ..
Engine break down:
The short block and the only used portion of the engine is a low mileage 347 stroker , scat 3.400 crank and rods with probe flat top pistons .![BA862446-3106-4F56-9737-B69CDAB2A5C8.jpeg BA862446-3106-4F56-9737-B69CDAB2A5C8.jpeg](https://forum.badlinesgoodtimes.com/data/attachments/0/970-036898774d1acd1c2f08e48bea9c4b44.jpg)

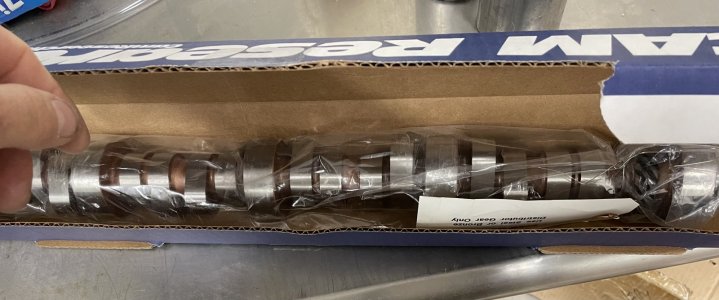

The engine did come set up with flat tappet lifters and cam but I’ll be swapping those out for some lunati hydraulic roller lifters and custom grind roller cam .
The heads are the pride and joy of this build full CNC ported 165cc AFR renegade heads . Not the biggest port size but should help build a healthy torque curve . I think they flow around 270cfm at 600 lift . Not wild in comparisons to LS head flow charts but should be plenty for this little engine . The head chamber size is 58cc , that paired with the 3.400 engine stroke , flat tip pistons and a .052 compressed head gasket that should put the final engine compression to about 10.6:1 .![64D64E89-48D8-4FB9-913F-CF6E3775D3E8.jpeg 64D64E89-48D8-4FB9-913F-CF6E3775D3E8.jpeg](https://forum.badlinesgoodtimes.com/data/attachments/0/973-3bb150236b8a3c092609ef44ac4fb403.jpg)

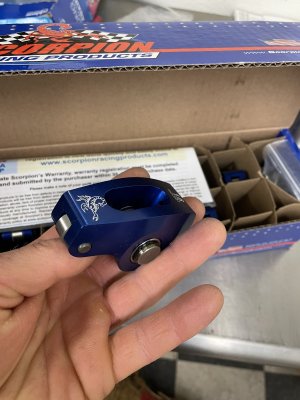

Roller rockers are a must
And to top it off I’ll be running a Holley high ram intake manifold .. I’m a little hesitant to see how this manifold will play out .. it’s a pretty large volumed short runnered manifold even though it doesn’t really look like it .. my guess is it might hinder the torque a bit but I just can’t stand the look of any other sbf multiport manifold so I took the gamble .. I also like that it’s set up to run and ls throttle body.![0000553D-9500-4E13-A8A8-195C74BAB222.jpeg 0000553D-9500-4E13-A8A8-195C74BAB222.jpeg](https://forum.badlinesgoodtimes.com/data/attachments/0/975-82878f4cda66eca236d5461fdbc76449.jpg)

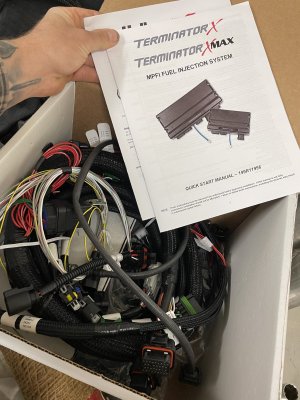

And all of the above with be controlled by the Holley terminator system![D8D256AA-3FDF-4B0E-A9D4-4863F42FD5C7.jpeg D8D256AA-3FDF-4B0E-A9D4-4863F42FD5C7.jpeg](https://forum.badlinesgoodtimes.com/data/attachments/0/979-df5e27d0d4b5ea4620f2b12af9fd5b76.jpg)
As for myself Iv been slowly collecting parts this past years to build and swap in a new heart for the bronco , only waiting on the final few pieces of the puzzle ( ordering engine parts during Covid has been a nightmare) .
It took me a while to commit to what I wanted build , ping ponging back and fourth between ls swap and staying with the nostalgic Windsor platform I decided to
Go ford .. for a few reasons ,1 Iv already build a few Ls and wanted to experience and experiment with a new platform , 2 I thought it would be cheaper ( it definitely isn’t ) and ,3 I really want to maintain as much nostalgia with the truck as possible ..
Engine break down:

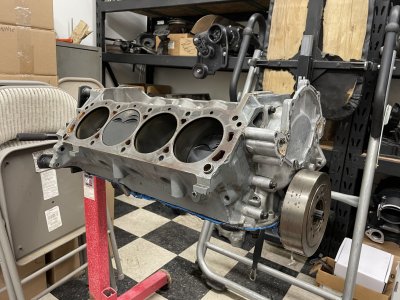

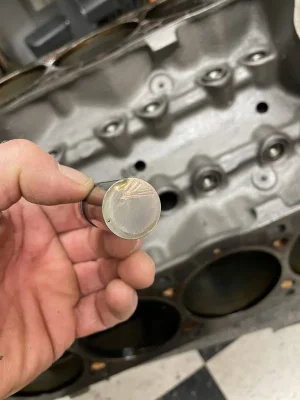

The short block and the only used portion of the engine is a low mileage 347 stroker , scat 3.400 crank and rods with probe flat top pistons .
![BA862446-3106-4F56-9737-B69CDAB2A5C8.jpeg BA862446-3106-4F56-9737-B69CDAB2A5C8.jpeg](https://forum.badlinesgoodtimes.com/data/attachments/0/970-036898774d1acd1c2f08e48bea9c4b44.jpg)
![395E5432-1C9C-4581-B42A-D2BF62D8F6A1.jpeg 395E5432-1C9C-4581-B42A-D2BF62D8F6A1.jpeg](https://forum.badlinesgoodtimes.com/data/attachments/0/971-f66ff0df23df3c82fd6fc8aca6cd87c4.jpg)
![32E1B063-F276-427D-98F5-D0B6A915658F.jpeg 32E1B063-F276-427D-98F5-D0B6A915658F.jpeg](https://forum.badlinesgoodtimes.com/data/attachments/0/972-7efc198d7e828f5605849f5d1e418778.jpg)

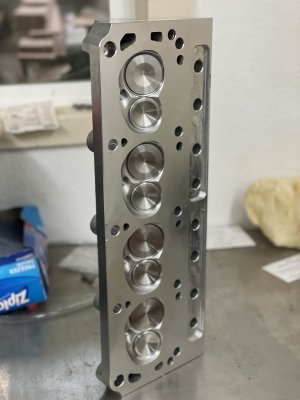

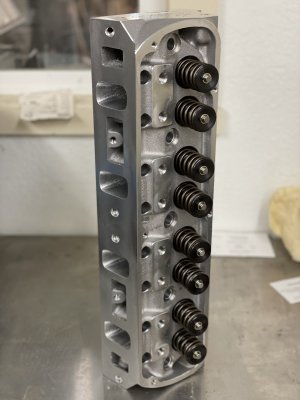

The heads are the pride and joy of this build full CNC ported 165cc AFR renegade heads . Not the biggest port size but should help build a healthy torque curve . I think they flow around 270cfm at 600 lift . Not wild in comparisons to LS head flow charts but should be plenty for this little engine . The head chamber size is 58cc , that paired with the 3.400 engine stroke , flat tip pistons and a .052 compressed head gasket that should put the final engine compression to about 10.6:1 .
![64D64E89-48D8-4FB9-913F-CF6E3775D3E8.jpeg 64D64E89-48D8-4FB9-913F-CF6E3775D3E8.jpeg](https://forum.badlinesgoodtimes.com/data/attachments/0/973-3bb150236b8a3c092609ef44ac4fb403.jpg)
![6D622A8F-348A-49DC-A8C7-DEFBC34FFD55.jpeg 6D622A8F-348A-49DC-A8C7-DEFBC34FFD55.jpeg](https://forum.badlinesgoodtimes.com/data/attachments/0/974-c83af13fc56daaf6f3e3a9d8e258148a.jpg)
![6C85E5ED-2F07-4D59-855C-07EB21B3A88C.jpeg 6C85E5ED-2F07-4D59-855C-07EB21B3A88C.jpeg](https://forum.badlinesgoodtimes.com/data/attachments/0/977-d838b4cef6404974fa7eb056dba48692.jpg)
And to top it off I’ll be running a Holley high ram intake manifold .. I’m a little hesitant to see how this manifold will play out .. it’s a pretty large volumed short runnered manifold even though it doesn’t really look like it .. my guess is it might hinder the torque a bit but I just can’t stand the look of any other sbf multiport manifold so I took the gamble .. I also like that it’s set up to run and ls throttle body.
![0000553D-9500-4E13-A8A8-195C74BAB222.jpeg 0000553D-9500-4E13-A8A8-195C74BAB222.jpeg](https://forum.badlinesgoodtimes.com/data/attachments/0/975-82878f4cda66eca236d5461fdbc76449.jpg)

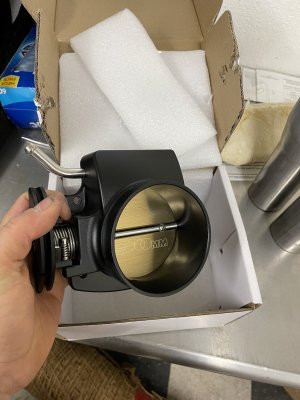

![E2DDFA8A-1BB7-48AB-B195-2B5937E7F5FF.jpeg E2DDFA8A-1BB7-48AB-B195-2B5937E7F5FF.jpeg](https://forum.badlinesgoodtimes.com/data/attachments/0/978-d9a0a5dec25d8ddd653617f8054b4503.jpg)
![D8D256AA-3FDF-4B0E-A9D4-4863F42FD5C7.jpeg D8D256AA-3FDF-4B0E-A9D4-4863F42FD5C7.jpeg](https://forum.badlinesgoodtimes.com/data/attachments/0/979-df5e27d0d4b5ea4620f2b12af9fd5b76.jpg)
