Garage Tools

[prerantaco]

With sketch-up once drawn can it be broken to flats to make the dxf



[DesertGoat]

fusion360 for my quickie projects (also free for non-monetized use)
My preference would be Siemens NX but it's not free.



[juberafab]

What's the deal with this? Retro fit cnc lathe from a manual?



[DTF_TACOMA]

With sketch-up once drawn can it be broken to flats to make the dxf

Kinda if you break out your parts into "groups"

I remember using a plug-in to flatten drawings.

I wouldn't suggest using it though.



[juberafab]

Radius guage set I picked up at the swap meet a few years back. Love little finds like this.



[turbomonty]

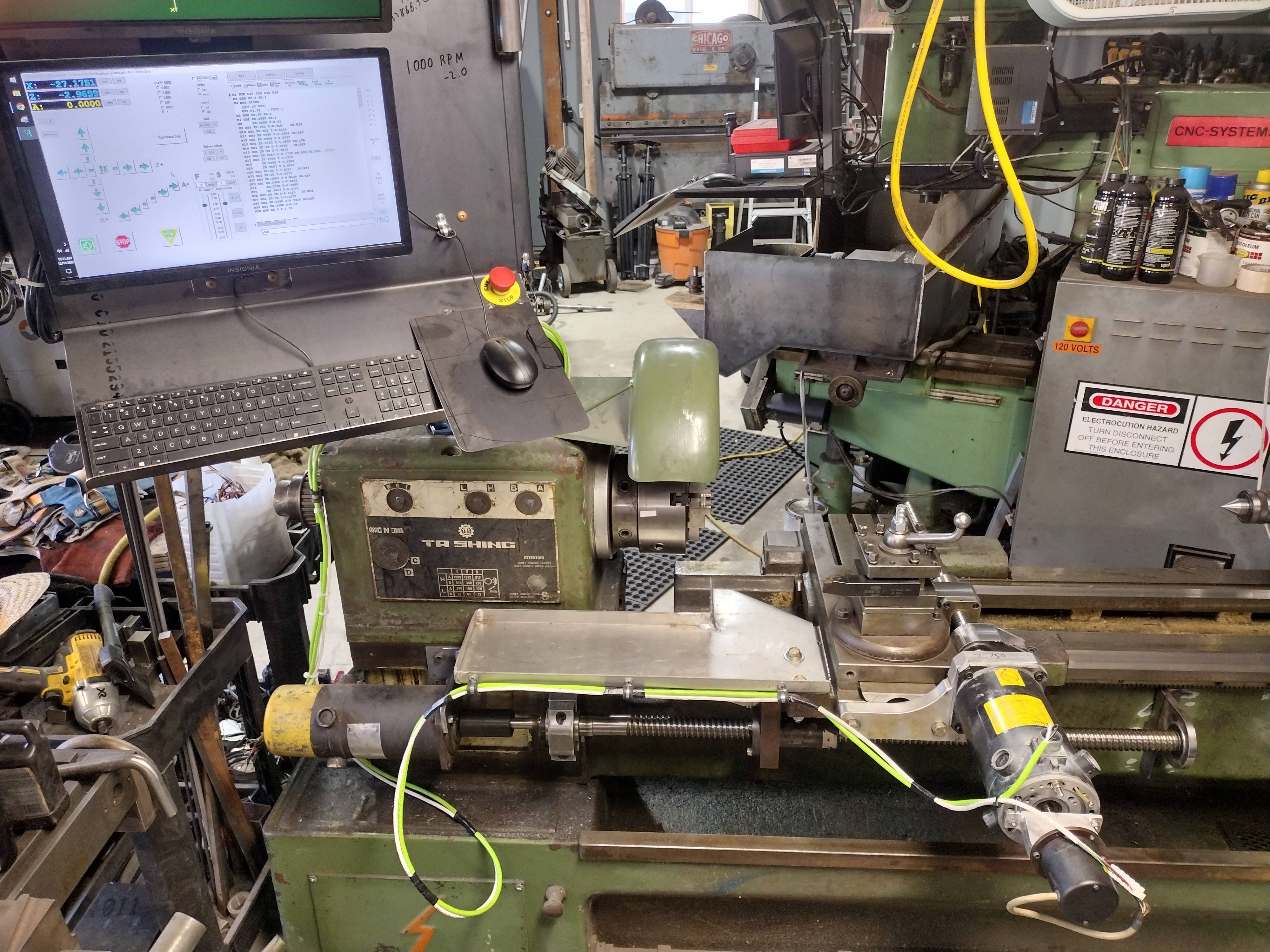

What's the deal with this? Retro fit cnc lathe from a manual?

ya, i got this after the fire destroyed all my shit, up in Washington there was an older guy had his son selling off all his shop tools. somehow the 2 drive gears for the threading gear box where exploded. i though it was great as i wanted to CNC convert her right from the start!



[Motiracer38]

I built an axle cart today using scissor jacks to adjust height during mockup phase. I do want to incorporate something to hold the pinion at a set angle.



[85Yota]

Looks awesome. Another piece of tubing with another jack for pinion would be awesome. Use some smaller box tubing with the jack attached to larger tubing that it can slide in an out for different axles
