charlie brown 1988 ranger

[charlie brown]

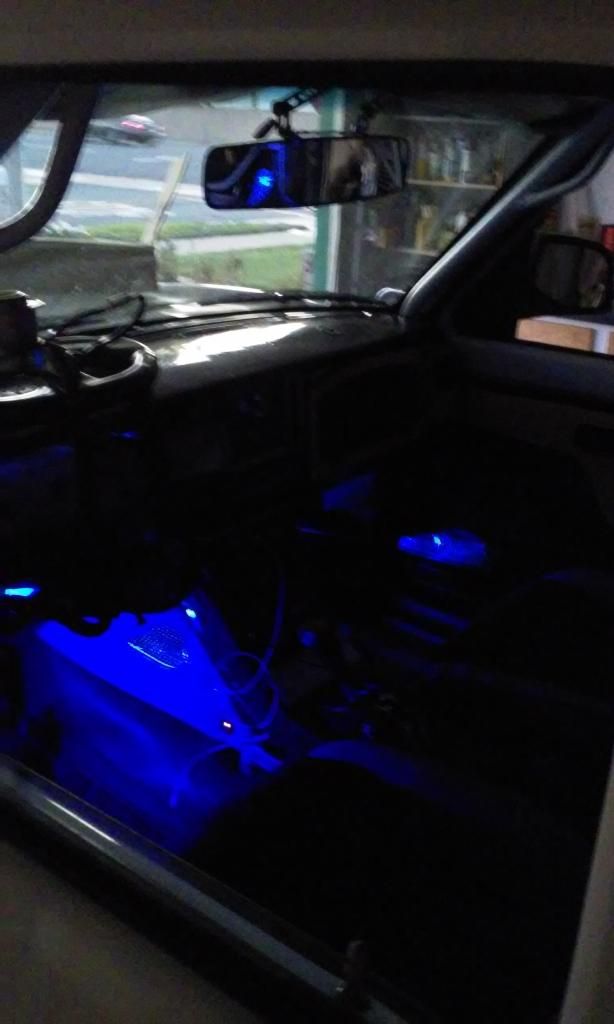

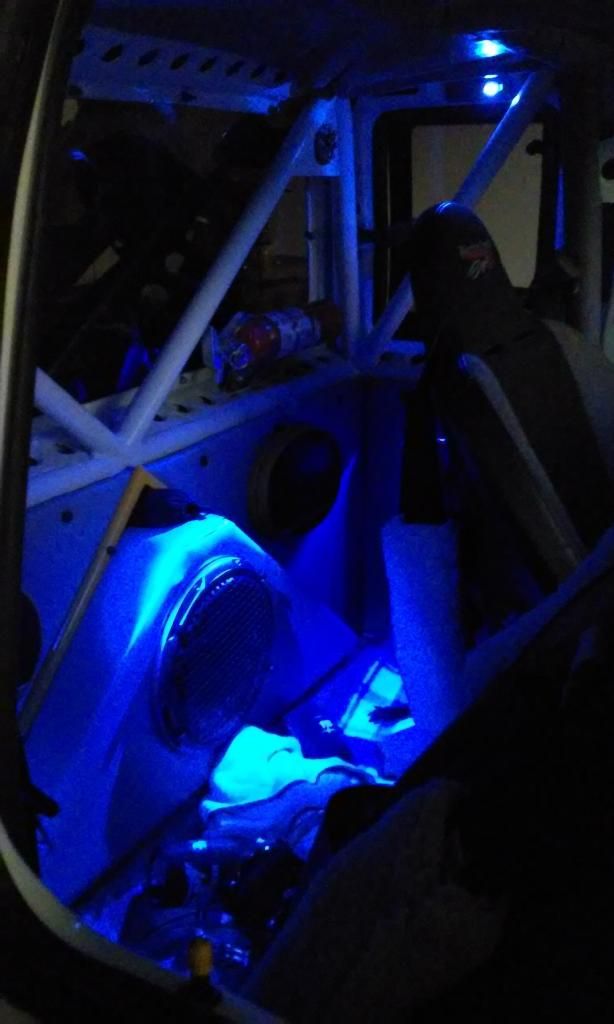

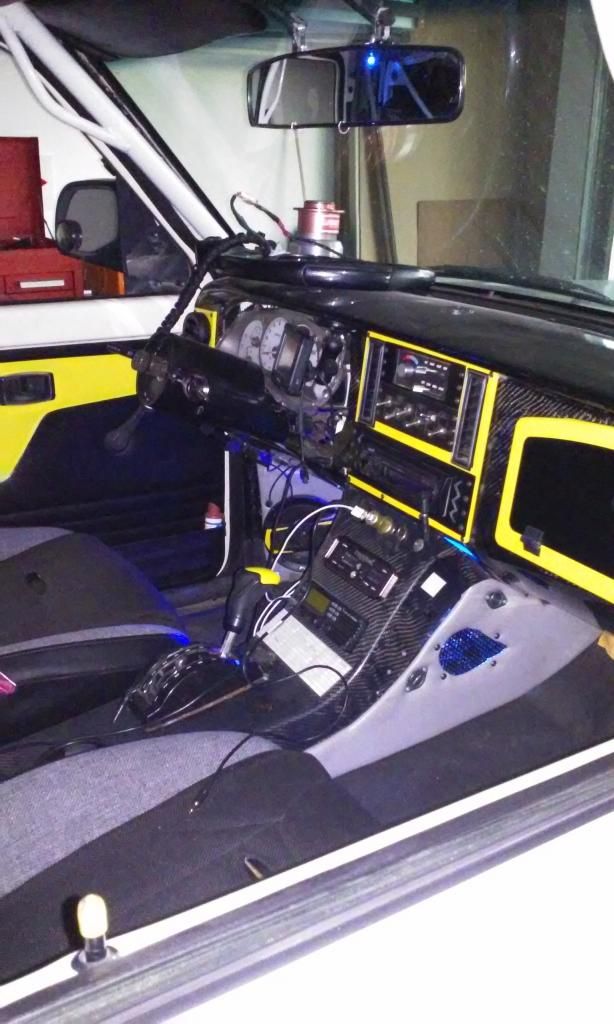

^^^^ I also have the white LED lights on the dimmer switch and when the door opens. hear are some shots of the blue lights installed. was just trying to go for a "glow" so when i am driving and the passenger is reading/looking for something, i wont get blinded.

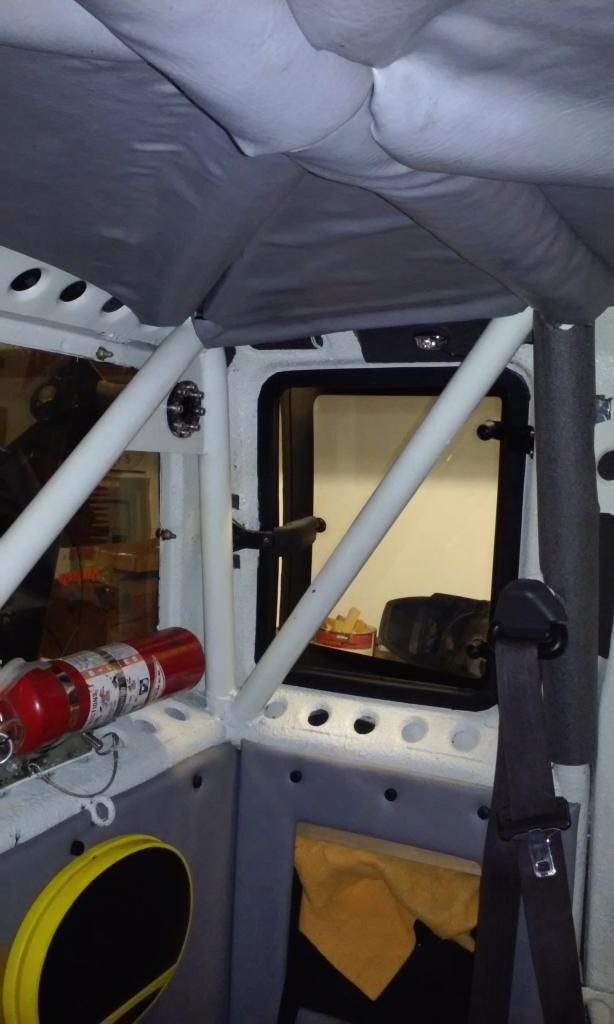

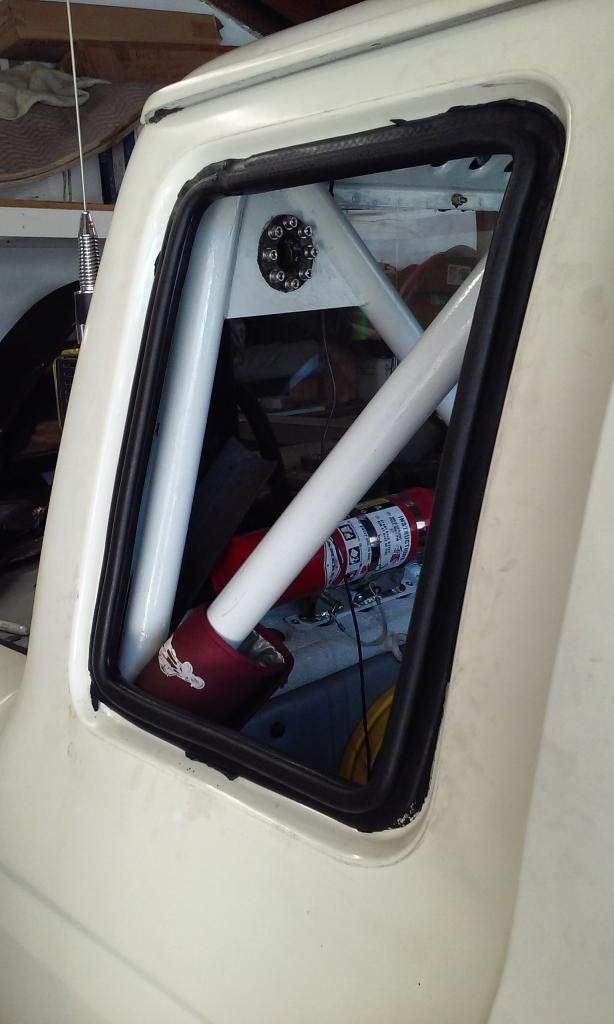

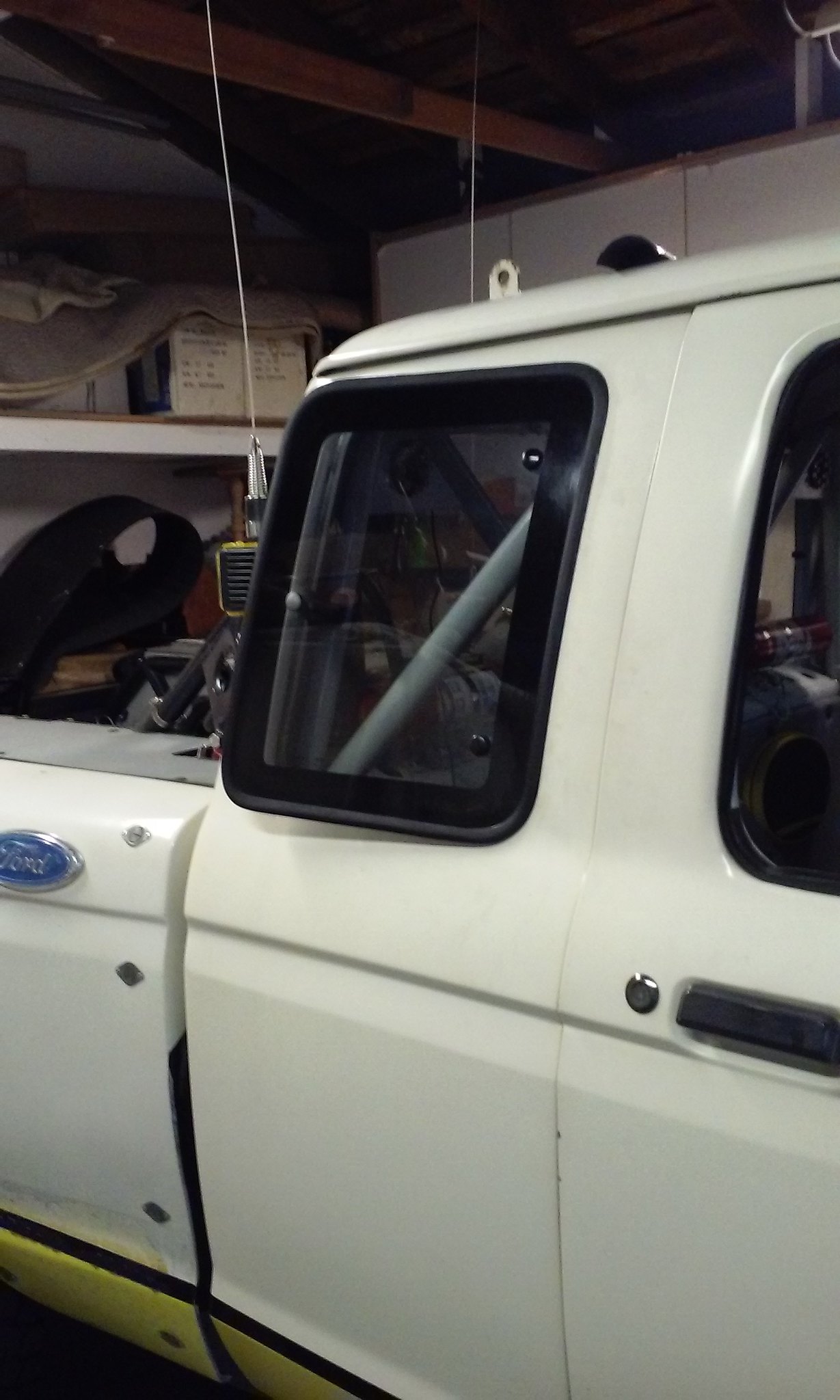

I also scored these pop out side windows. don't think they were a option in 88 but i got them. was a pain in the ass installing them after a cage was already installed.

I orderd a IRD/back up camera kit. going to install that soon.

waiting on my wire guy to send me the part numbers for the gauge so he/we can get that going.

tried to help a friend bleed his trailer brakes.



[charlie brown]

• Aug 22, 2015

•

• Add bookmark
• #132

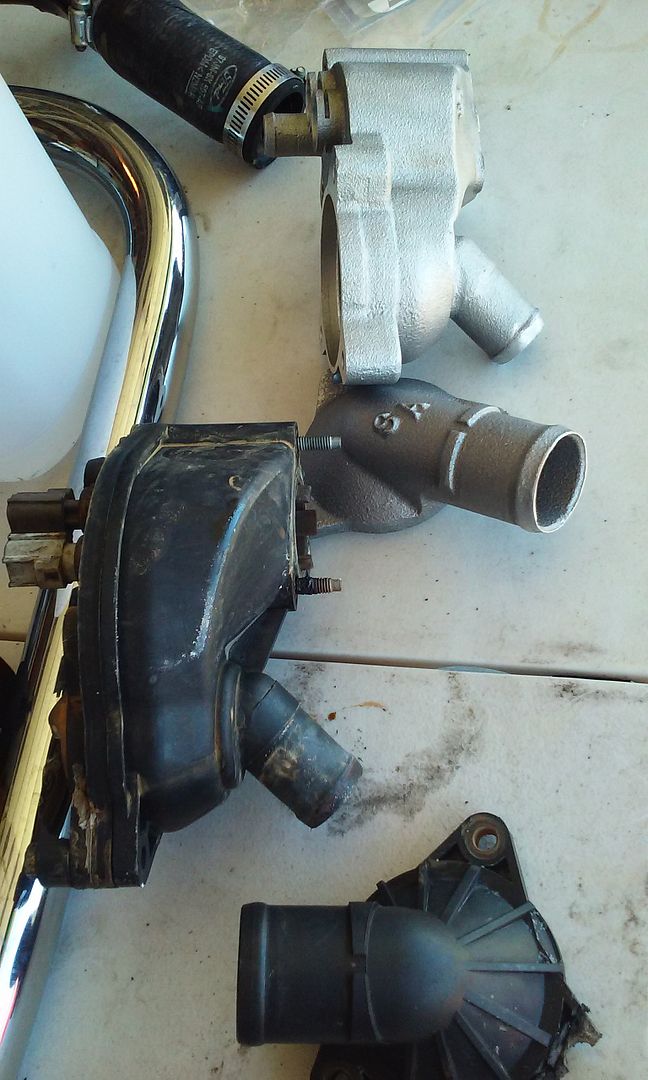

I found an replacment of the POS plastic thermal stat housing to a metal cast one. I have replaced about 3 of these since i have had this motor. Hopefully this one will be the last.

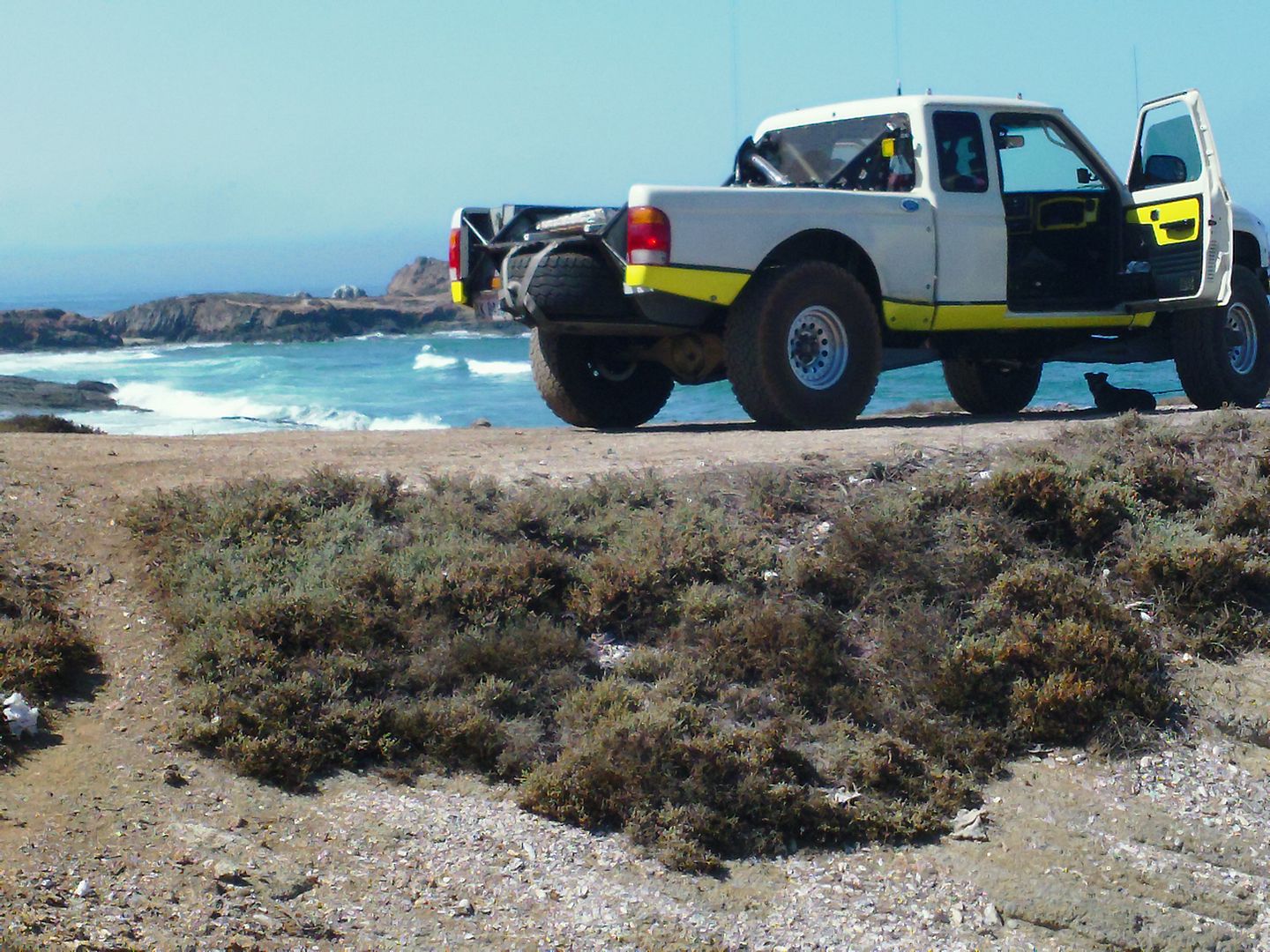

also, took a little R&R baja trip last week to coyote cals. found myself on the beach part of the race course.

got a new Dakota digital dash going in next month.

• ug 22, 2015

•

• Add bookmark
• #133

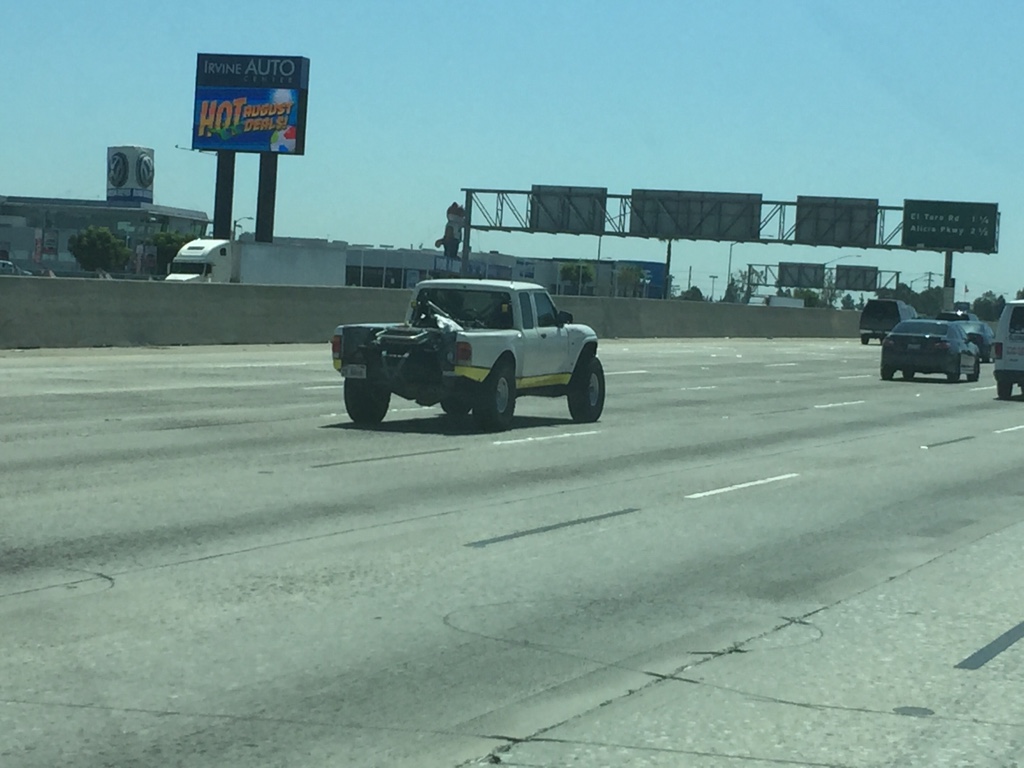

I spotted you on the 5s the other week figured you were heading to Mexico



[charlie brown]

• May 14, 2016

•

• Add bookmark
• #138

it has been a while since i have updated this thread. I have been just working on little things keeping it going. the new gauges are all in and work great. had some new back lighted switch panels made and had it all powder coated.

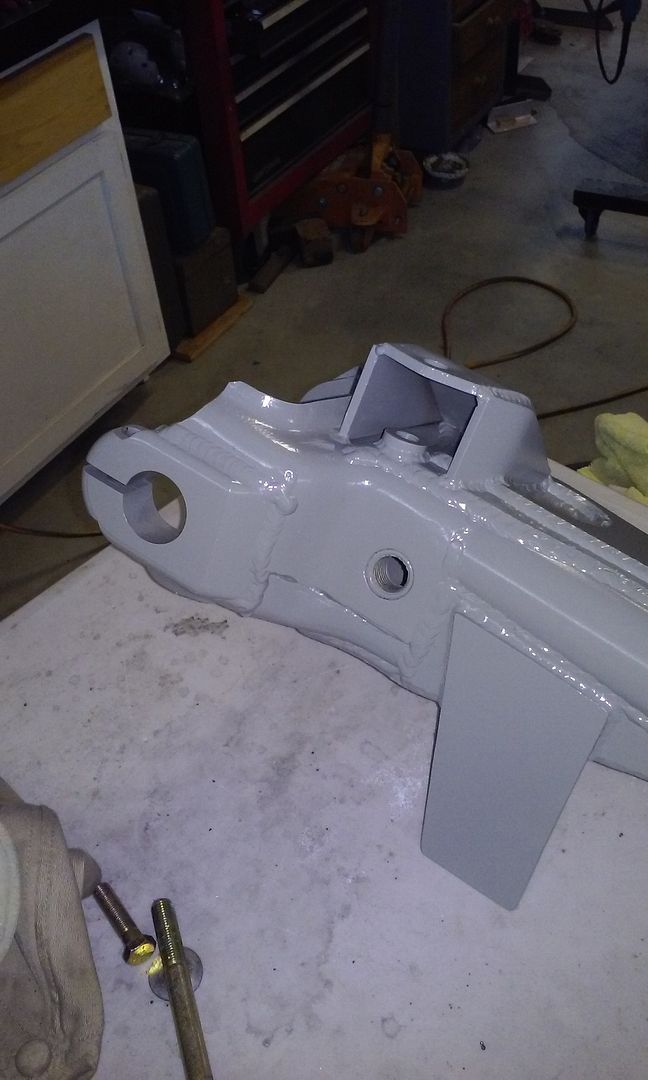

one of the things i have been struggling with this threat beam front end has been with the passenger side upper ball joint. the spread was not right. right after i installed this front end, i kept breaking upper alignment cams. with out going into the whole deal with threat with this, i just have been carrying extra parts with me.

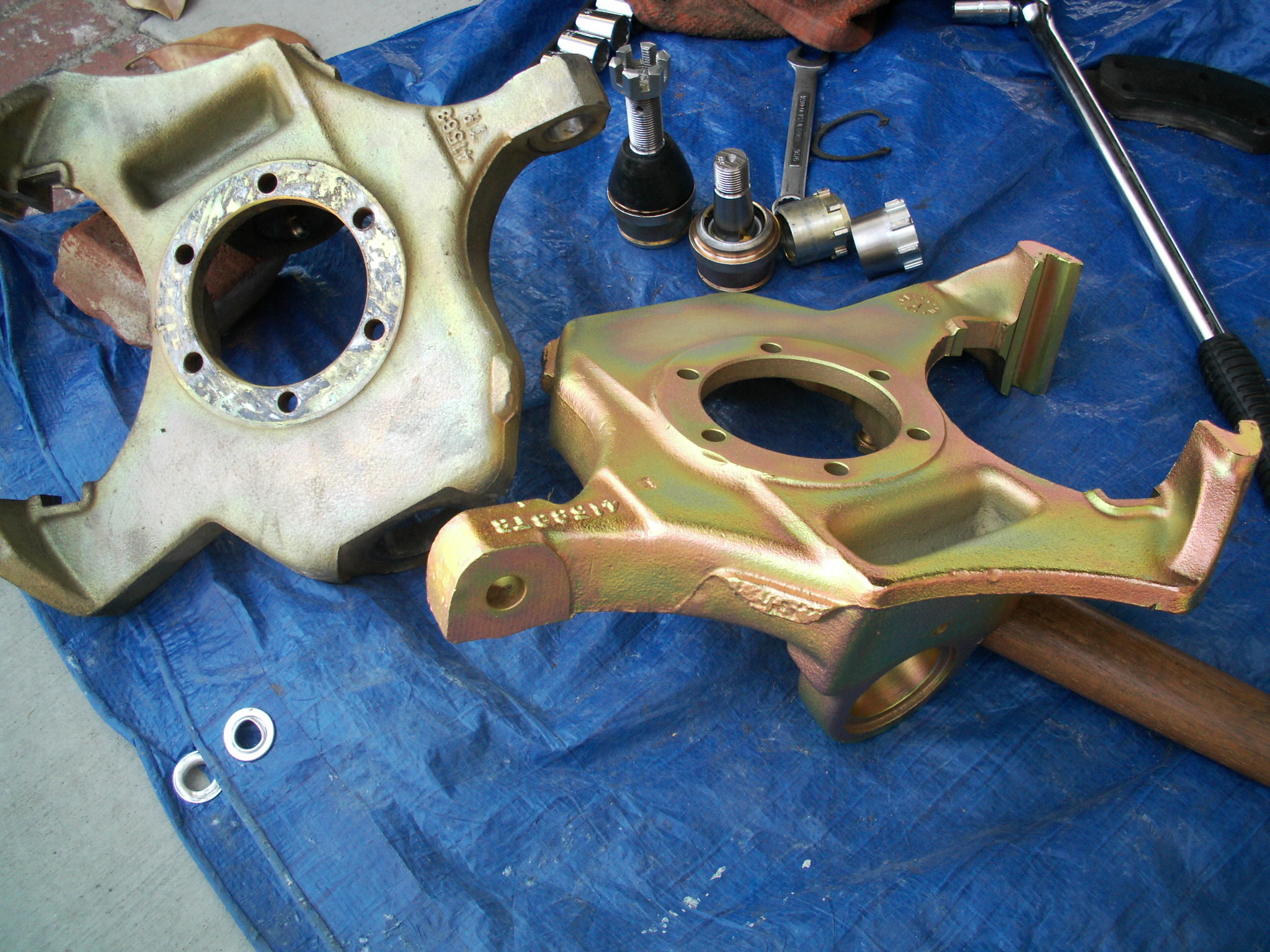

geoff from giant motorsports had some new ball joint ends made and reworked my beams. he als reset the "base" alignment. now it is all good.

while prepping to head back to baja for play/prerun the baja 500 coming up, i found some roller bearings coming out of my trans fluid. so now i am getting a new trans for this truck before i go.
I also have been making a new cross member under the trans that ties in the front cross member and the rans/raduis arm mount. it has a 1/4" skid plate to protect the new deep trans pml pan.



[charlie brown]

• Sep 22, 2017

•

• Add bookmark
• #147

I haven't updated this in a while because my old lame ass struggled with the photo bullcrapp i thin i have my photos transferred over to another host so i should be good to post.
too hard to figure out what photos show and what does not so here is just a bunch.

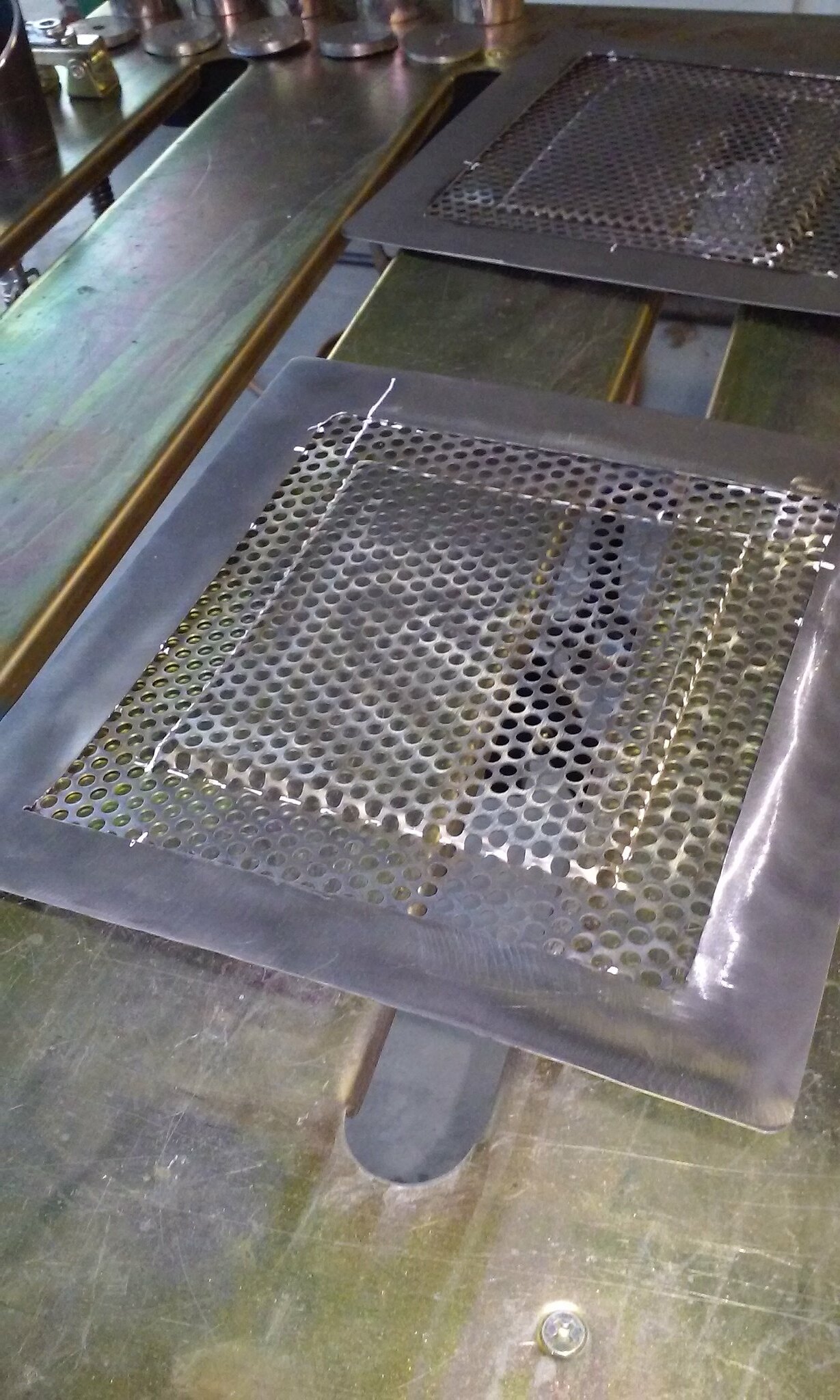

storage doors1 by chris walker, on Flickr
https://www.flickr.com/photos/158817278@N08/shares/5M1Z0b

• Sep 22, 2017

•

• Add bookmark
• #148

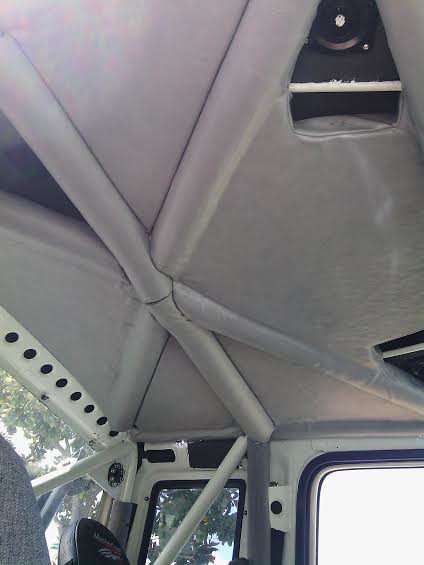

headliner.3 by chris walker, on Flickr
headliner by chris walker, on Flickr

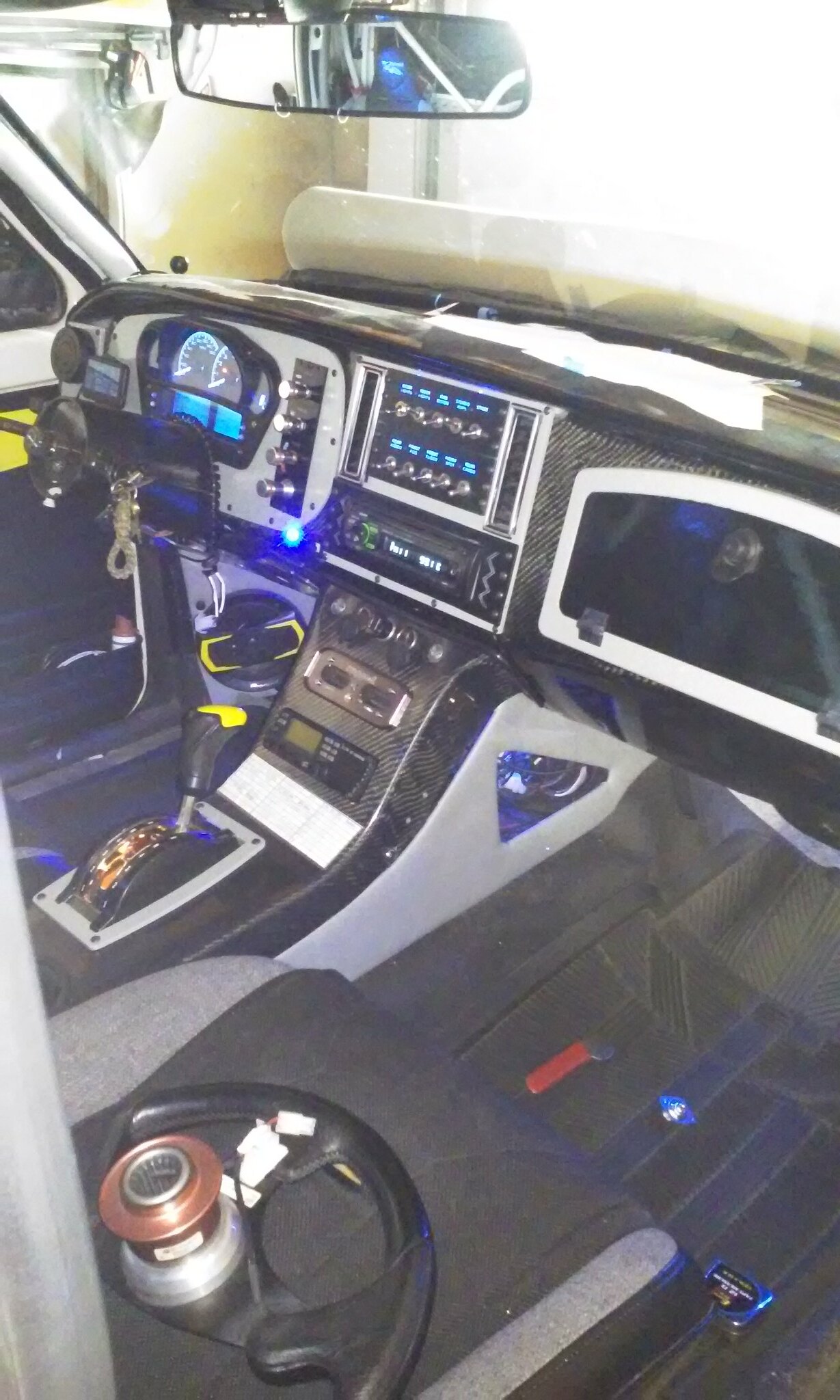

dash gauge.3 by chris walker, on Flickr
popout sidewindows by chris walker, on Flickr
DSCI0124 by chris walker, on Flickr
DSCI0015 by chris walker, on Flickr
ChrisWalker 175 by chris walker, on Flickr



[charlie brown]

• Feb 23, 2018

•

• Add bookmark
• #164

<br><br>

<br><br>

• Jul 27, 2018

•

• Add bookmark
• #171

• Nov 30, 2018

•

• Add bookmark
• #177

• Feb 18, 2019

•

• Add bookmark
• #195

Always wrenching. Dont think you will ever be done. Once the main build is over.....changes and rebuilds. My pops came by the other day as i was working in the garage and saw my truck striped down and asked "whats broken". I just laughed and said nothing on the truck but i am. Always wrenching.

Getting shocks rebuild and some valving.
Wanted to drive it around the block with it all bumped out but could not make it down the approach.

Attachments​

•
  3.8 MB · Views: 428
•
  1.5 MB · Views: 433

Quote from Ted Nugent: As long as the idiots don’t like you, it proves you are not an idiot.



[charlie brown]

Attachments​

•
  truck jump.1.jpg
  2.6 MB · Views: 333
•
  truck jump.2.jpg
  2.5 MB · Views: 346
•
  truck jump.3.jpg
  2.6 MB · Views: 351
•
  truck jump.4.jpg
  2.6 MB · Views: 338



[charlie brown]

So i am finally getting around to posting a update on here.
Went to baja with my daughter co riding with me for a 9 day prefun run. The 1st 4 days were spen with mike and his crew (mike_likes_trucks). We had a blast runing through the pine forests and the beach runs.
The 2nd half was mostly r&r time for my daugjter and i. We stayed along rhe pacific side rhe whole time. You can check out mikes post on here amd he gives much better details.

Attachments​

•
  521.8 KB · Views: 310
•
  1.1 MB · Views: 300
•
  1.7 MB · Views: 309
•
  1.8 MB · Views: 327
•
  1.6 MB · Views: 301
•
  1.5 MB · Views: 329
•
  1.9 MB · Views: 306
•

• this trip was so much fun. remember this Mike..



[charlie brown]

• Jun 11, 2019

•

• Add bookmark
• #201

Now doing some prep for a summer fun run.
I installed some hub centric sleeves on the dana 44 front hubs while i qas preping the front corners. These things fit great and hold the rim good. I did find a good crack on the passenger side swing set.

I have had a problem with a fuel leak around the top plate so i dug into it this time. Wow...... My 20 year old cell is de laminating at the top.
So i called fuel safe to order a new bladder. Say what?? They change sizes in 2006 and dont make the old size anymore other then custom and even though they made this comon size for 20 years....no one has records of it so now its a custom. Even thou the new standard bladder is only a 1/2" wider. Not sure if that will cause a problem. All fuck.

I did by a new cell last year to start preping fo a v8 swap. It is a 41 gal. But to put it in, i will have re-back half the truck. Shit. Was not ready for this yet.

I have been trying ro get hold of harmon cells but after a day and a email, 2 calls, nothing yet. I may just order tubes and start cutting

Attachments​

•
  1.4 MB · Views: 213
•
  1.9 MB · Views: 229
•
  1.5 MB · Views: 244
•
  1.5 MB · Views: 204
•
  1.4 MB · Views: 219
•
  1.5 MB · Views: 252
•

• • Jul 14, 2019
  •

  • Add bookmark
  • #207
  So a little bit of a post baja 500 fun run damage repair and prep for the next run.

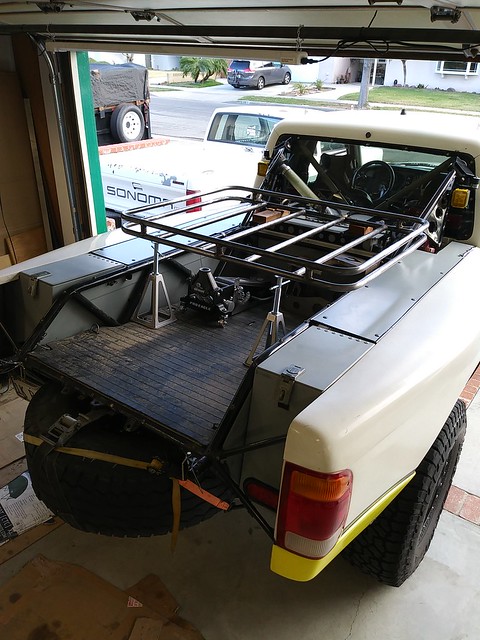

  truck is ready to go on a run now but i did order a new swing set from dave threat ms. my current one is his 1st gen and it had the supper wide spacers which i never got so i just been ruining a stack of washer. it has been on my list to drill out and sleeve them but never got to it.

  the new one is his current set up with the bolt on plates and like my old ones, i order it with uni balls instead of a bushing pivot. it will get installed in a month or so. mean while, i already fixed the crack.

  i also bought a eagle one jack 3 years ago to mount on my truck some where. i have not been able to find a easy place to mount it with out my weak ass arms raging it off the bed sides. I could just mount it in the bed but on trips to baja, it would be covered up and hard to get to. i do carry a small bottle jake and one of the large scissor jacks but not sure if i trust that thing. any ideas?

  the new fuel cell is 1/2" wider then the can. had to work it a bit. i hope it does not create any problem. thats the difference from the old size to the newer size. they change a bit in 2006.

  here is a break down of the post 500 repair and prep fo another trip.

  new fuel cell bladder and fuel filter, miss. hardware. $1200.
  new AC compressor. the wire going in my old one vibrated apart. $700
  new tire to replace one with sidewall plug $250
  4 corner prep/grease/brake/drive plate check $100
  flush power steering fluid, pan change trans, engine oil, check diff. $200
  new AC vent, new limit strap on one side (got in the tire). $50
  miss. stuff i forgot like air filter, diff filter, cleaning supplies. $50
  total $2550
  extra cost for new swing set about $1k + changes i will make to it and powder coating and while at it i will re-powder coat the tie rods and new alignment. $150

  been driving it to work a few times as a shake down.

  i have never added this shit up. i just do it and have fun. dame, this shit is pricey.

  anyways, i am ready for the next trip. looking for a baja summer trip, then petes camp poker run.



  Attachments​

  •
    76.2 KB · Views: 209
  •
    63.9 KB · Views: 194
  •
    56.2 KB · Views: 202
  •
    2.4 MB · Views: 215
  •
    1.5 MB · Views: 206
  Quote from Ted Nugent: As long as the idiots don’t like you, it proves you are not an idiot.



[charlie brown]

• Sep 28, 2019

•

• Add bookmark
• #214

Offroad expo day. Then its off to baja in 2 weeks for the norra 500 hang out only for me.
Then to san felipe for the petes camp poker run.

Thanks brian (blackwidow exhaust ) for having my not so show beauty queen truck at your booth.

I have used a lot of mufflers over the 31 years on this truck. The blackwidow muffler has been one of the best. Been on my truck for 4 years now. Its light so i xont have to re-weld it all the time, good sound,and no real drone like so many others

Attachments​

•
  1.6 MB · Views: 427
•
  1.1 MB · Views: 391

Quote from Ted Nugent: As long as the idiots don’t like you, it proves you are not an idiot.

Somtimes i look at othwr trucks and i want to do so many things different. Thats why i have been considering a new build instead of a rebuild.

Anyways, had a blast for 4 days of baja.

Thursday...friday in ensenada norra. Got to meet bajadog. Maybe we can work somthing out for the 1k??

Then it was off to san felipe for the petes camp poker run. Meet up with mike (mikes_likes_trucks) with his 69 f-100.

This year i pushed my way over with the fast guys. They were all heavy hitters. Ex cops racing prerunner....and the 70s dent sides where big hp. Everyone in my line had big power.

My little v-6 hung in there good until my daughter got motion sick and we had to stop.

Thats when things started to test us.

Mike stopped to make sure we were good. Then his truck died. Hmmmm. Wtf.
Blew fuel pump fuse. After some time, he figured it was the pump. Good thing he had a spare.
Took a while to get to it but that was it.

Then we found out we were about 5 miles off course. Crap. Once back on course, and some up holl long sand washes (along with 95+ temps) we started some temp issues so a deink stop was in order.

Dam sand got us when we started. Broke out my sand bags and we started digging. Then the local 4x4 sweep team came by and gave us a tug.

Back running. At the half way point we considered just taking the access road back. But then i remembered last year that the 2nd half was the best. After encouraging mike, we blasted it. And it was the best part.

Back at the cantina for dinner, live band' and beers.....

Another great baja trip and storys for years.

Attachments​

•
  1.7 MB · Views: 357
•
  1.3 MB · Views: 327
•
  1.7 MB · Views: 326
•
  1.9 MB · Views: 335
•
  644.8 KB · Views: 307
•
  1.7 MB · Views: 313

Quote from Ted Nugent: As long as the idiots don’t like you, it proves you are not an idiot.



[charlie brown]

• Oct 14, 2019

•

• Add bookmark
• #226

nice little recap, Chris!
Thanks so much for running with me all day despite all the issues I was having, made a huge difference. So glad you convinced me to run the 2nd half, saved the whole trip probably.

Here's a few photos I grabbed from the weekend although I'm an idiot and never snapped one of the 2 of us together.

(you're in the background of that ^ one!)

lets go again this year Mike...2023



[charlie brown]

• so this is when I started the re-build upgrade on my front cage. it blew out at the petes camp poker run.
•

• Oct 24, 2019

•

• Add bookmark
• #239

Picture broken tubes.

Attachments​

•
  1.1 MB · Views: 304
•

• • Oct 25, 2019
  •

  • Add bookmark
  • #245
  Here is a side view of what i was trying to say. I will be cuting out that 1". It should of been going rhe other way from the beginning.



  Attachments​

  •
    1.6 MB · Views: 259
    • Nov 1, 2019
    •

    • Add bookmark
    • #251
    Although most of my cage was bolt together, some was welded. Took almost 3 days to strip it down, cut and grind most all off.

    Starting to figure out what i am doing.



    Attachments​

    •
      1.4 MB · Views: 420
      Yep. The cwnter mount raduis mounts and arm could be different.

      When it was built i think i was runing 31" tires or maybe 33". With bigger tires i can bump more.

      This weekend i got to run the tubes on the passenger side, set new bump cans, and make the mount for the new ump air box.

      Still waiting on the brake master relocation bracket before i start shock mounts and engine cross over deal.

      I ordered 2 brake master brackets. One is a 180° and another 45°.

      Will see what fits.

      My drill on my notcher caught and twisted my hand. Fucker.



      Attachments​

      •
        803.3 KB · Views: 344
      •
        433.9 KB · Views: 376
        • Mar 8, 2020
        •

        • Add bookmark
        • #275
        a little work. keep moving forward.

        brakes bled and !00% complete. happy not having to have brake fluid all over me, tools, floor.

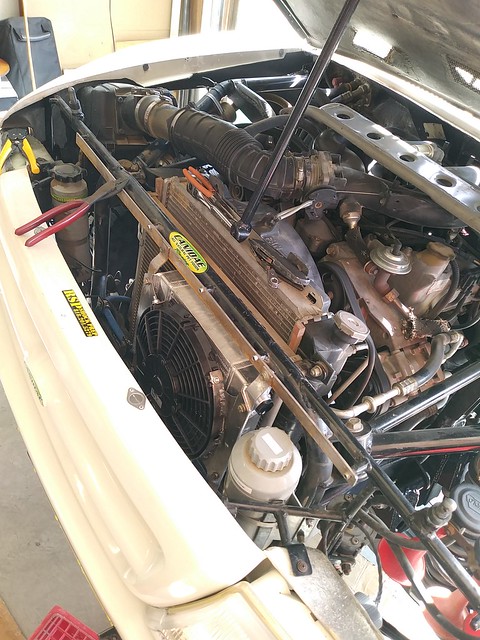

        air filter fits great and so far no codes thrown yet. but only garage start up so far.

        made like 3 sets of upper shock mounts but all had issues with not letting shocks fully cycle, pin in ass to service so i think this is a final. only had time to make the outer mt. inner will be another day.



        Attachments​

        •
          engine cross tube.jpg
          1.5 MB · Views: 303
        •
          mod ump air filter.jpg
          1.2 MB · Views: 256
        •
          p-side outrt shock mt.jpg
          1.5 MB · Views: 267
        •
          top brake mc.jpg
          1.3 MB · Views: 275
          • May 3, 2020
          •

          • Add bookmark
          • #276
          Well, this took way longer then expected. Shock tuning coming up.



          Attachments​

          •
            1.8 MB · Views: 228
          •
            1.7 MB · Views: 226
          •
            1.3 MB · Views: 227
          •
            1.8 MB · Views: 266
          •
            1.5 MB · Views: 249
          Quote from Ted Nugent: As long as the idiots don’t like you, it proves you are not an idiot.
        •

        • So after 20+ years, my winters shifter gave up. At 1st i thought it was just thw cable. But after a cable swap, it was thw shifter.

          Back to the parts store for a new shifter.

          The new style is different then the OG. The new is more modular with different mounting options.

          Of course it would not fit my mounting so i had to get the cutting/grinding tools out.

          After cutting it up, drilling a hole for my overdrive button, installed some blue LED light strips. It was ready to be installed.
          Should be good for another 20 years with this part.



          Attachments​

          •
            1.4 MB · Views: 218
          •
            1.5 MB · Views: 218
          •
            2 MB · Views: 201
          •
            1.6 MB · Views: 201
          Quote from Ted Nugent: As long as the idiots don’t like you, it proves you are not an idiot.



[Baconcreekmetal]

Awesome truck. Great story.



[Baconcreekmetal]

And I love the fact you've kept it all these years and are still building it.



[charlie brown]

started my prep for the upcoming baja 500 prefun fun run and spectate. i am in need of a new AC/heater blower motor for my defunct hot rod air AC system. they went under years ago. i am going on my 3rd fan. the fans dont hold up to the pounding of offroading and usaully the cage fan breaks. I dont remember the last place i got one. looking for a good source.



[Turboyota]

Such a fantastic story and truck! I love that it keeps getting improved, rebuilt, and modified to better suit your needs and the changing conditions of Baja.

Looks like a lot of the pictures are still hosted on DR, so that’s worrisome.



[Baconcreekmetal]

Try Classic Auto Air. They seem to carry lots of random AC system parts.



[charlie brown]

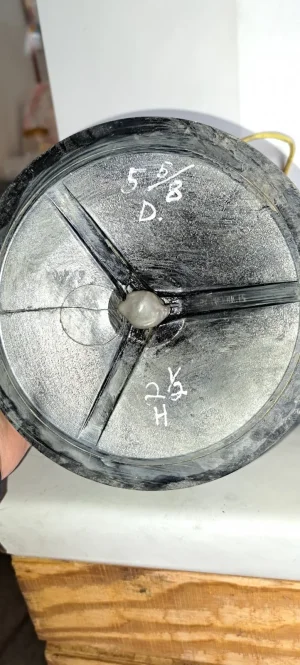

i wish the last time i hade to replace this cage wheel i documented where i got it in my log book. this time i will.

30-1824 - Blower Wheel | Hurricane Systems

Order a replacement blower wheel from Old Air Products for your Hurricane heat, cool, and defrost units. This air conditioner blower wheel comes with a clip.

www.oldairproducts.com

its the exactly the same.

sourced out a new electric motor just because mine is more then 25 years old. it also took a while to find and it will get some space in my log book.
this is only temporary fix because it broke. just to get me by the up coming baja 500 run and this summer. new updated AC system (bigger) is in the works.

Blower Motor OEM #: D001-435

the internet is such a great resource for part searching.

not for this trip but i am still sourcing parts for the updating my front. needed to figure out which way to go with hubs. i think i am going with the speedway engineering GN alumina hubs. same as i have been running on the rear for so many years with no issues. this way all four hubs and the same.

i am looking to having someone design and machine some different caps to make them "more" of a hub centric type.



[theycallmeWALLY]

Always love the progression on this truck.

It show's people that you don't always need to be chasing a new truck but just stick to one truck and make it yours year after year.



[DesertGoat]

(you're in the background of that ^ one!)

lets go again this year Mike...2023

Poker Run 2023 - hell yeah.
One of my favorite events and this photo you copied over here is right up there on favorite photos of my old truck for sure.
what a friggin' day we had that year, sheeeeeeesh



[charlie brown]

Poker Run 2023 - hell yeah.
One of my favorite events and this photo you copied over here is right up there on favorite photos of my old truck for sure.
what a friggin' day we had that year, sheeeeeeesh

lets go..... one of the best time of year to be in san felipe.
