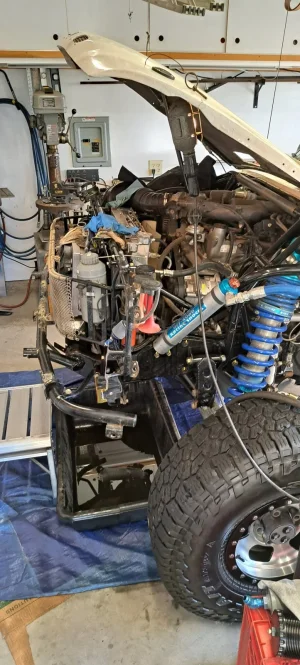

had time to work on the "unplanned" power steering system. i sized up and test fit the new pump in its spot.

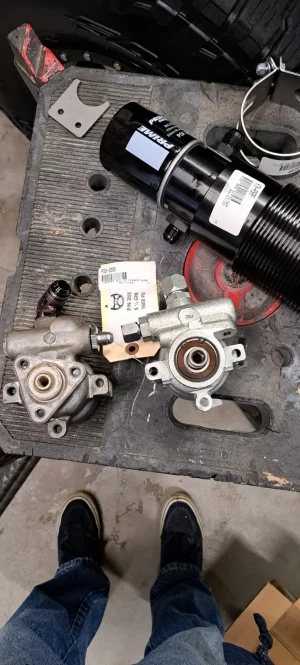

it fits and the bolt pattern is the same. but the shape of the case is a bit different. the bolt tabs are set back farther on the case so i had to space it back some. this put the -10 suction hose to close to the bracket system that holds the pump and the AC. i will just clearance it with a roto file. that should work.

making all new hoses. back in the 80s, LEE steering made the reservoir for -6. so for 30 years my system was -6 except the return from the reservoir to the pump. Howe (jeff) to me to up grade the reservoir to a pressure type with a filter and run -8 from the box to the reservoir. then -10 to the pump. well it worked fine for 30 years with the rou dy round type reservoir and system but tires and all are changing so will this.


Attachments

  • 20230120_142209.jpg
    274 KB · Views: 13
  • 20230120_134508.jpg
    279.8 KB · Views: 13
  • 20230110_183330.jpg
    243.4 KB · Views: 14
  • 20230114_121816.jpg
    280.8 KB · Views: 18

charlie brown

Active member
Joined
Apr 4, 2022
Messages
140
getting some time in the garage today while all my buddys are at koh.

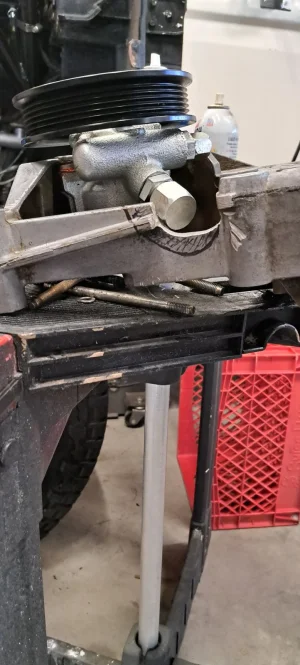

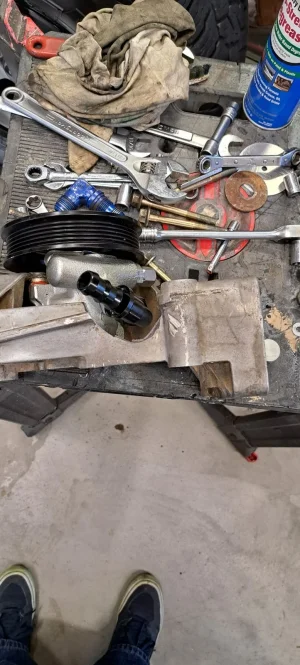

ground doen the bracket. test fitting the suction hose. figuring out what fitting will work while its mounted in the truck.


Attachments

  • 20230202_085545.jpg
    262.1 KB · Views: 12
  • 20230202_085507.jpg
    235.7 KB · Views: 11
  • 20230202_083615.jpg
    206.7 KB · Views: 12
  • 20230202_082534.jpg
    234 KB · Views: 12
  • 20230202_082237.jpg
    276.1 KB · Views: 15

theycallmeWALLY

Administrator
Joined
Mar 30, 2022
Messages
932
Stoked you are getting close.

So I've never seen those alignment tools but I always thought a long straight edge should work well enough? Am I wrong?


Cleandezert

Well-known member
Joined
Apr 7, 2022
Messages
279
Stoked you are getting close.

So I've never seen those alignment tools but I always thought a long straight edge should work well enough? Am I wrong?
the couple times i had issues and was diagnosing them, i clamped a straight edge off crank pully and measured off that to others.


charlie brown

Active member
Joined
Apr 4, 2022
Messages
140
so i cut some sections of 1"x 2' aluminum and straight edge it. its hard to get in there with everything installed ready to run. but i got it very close.

it was hard with only 2 hands to get up in there and every sheave has a different thickness.

got it from a squealing pig to a small bird chirp. but i may have bottom out the sheave on the shaft. so i might have to take it all apart and shim the pump closer to the engine a bit more.

when i am done, i will document the size of shims, pump i used, hoses and size, fittings, and how much roto file clearance i had to do. should be a simple conversion with those tips.

dam internet and trucks with shopping 24/7. i wanted this done so the other night i did some late night purchased. bought the gates belt kit from rock auto. has a new belt, tensioner, and idler. then i bought the pully removal tool (which i need in my box anyways) and the gates laser alignment tool. oh well.


charlie brown

Active member
Joined
Apr 4, 2022
Messages
140
so i finished up this power steering conversion finaly. i will break it down in one post for anyone that may want to do it.

1st off i cant remember what a stock set up is like
this truck has had a upgraded system 3 months in its life back in july 1988. something when i did this motor swap.

parts:

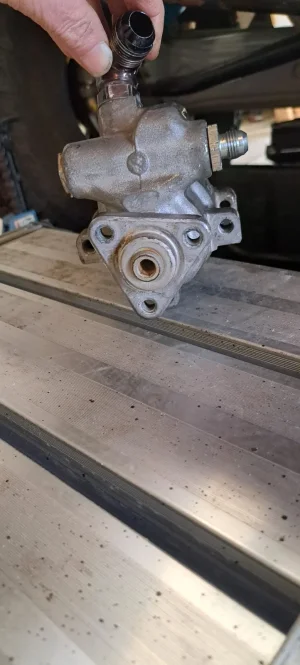

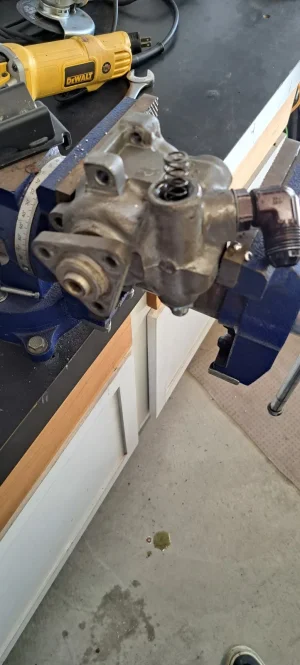

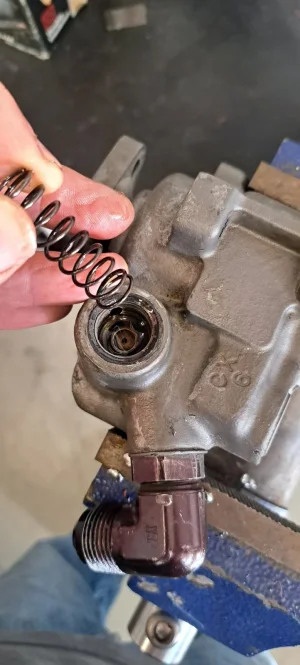

pss pump # 2005 1600 psi charlie recommended. $450.

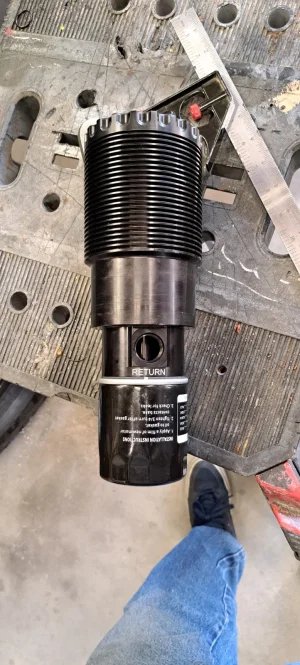

a kartek reservoir with filter. $200.

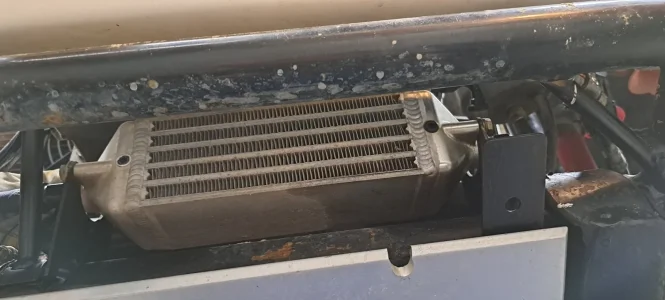

cooler. i used triton cooler from armada engineering . its similar to a cbr. i forget how much because i have had it for a few years. a cbr is about $430 but you can get some for under $100.
a howe sheave 5 3/8 #how 315 $100.

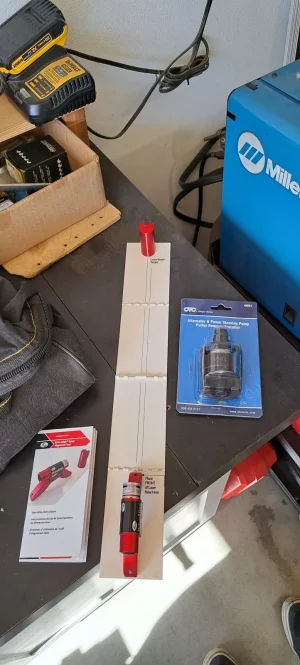

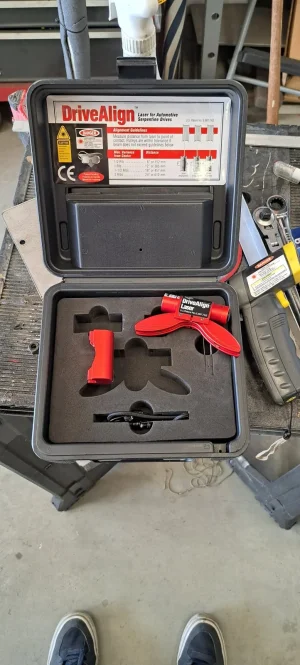

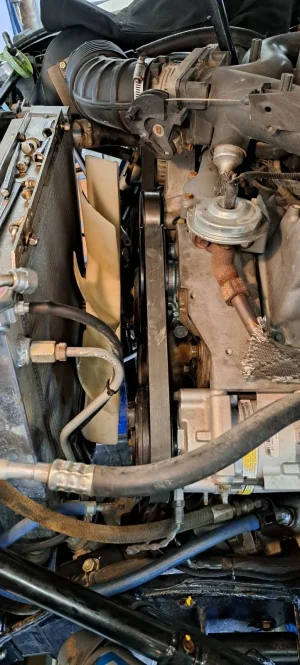

i bought a gates laser alingment tool. a straight edge will work but with so many things in the way (water lines, fan shroud, trans lins, AC lines) i had a hard tim worki g by myself. about $100 depending on where you get it..
new gates drive belt kit. idler pulley, tensioner, belt. $75 from rock auto.
assorted fittings, adaptors, sizes, and hose. $200.
swepco fluid. $70
some pre made reservoir brackets $30

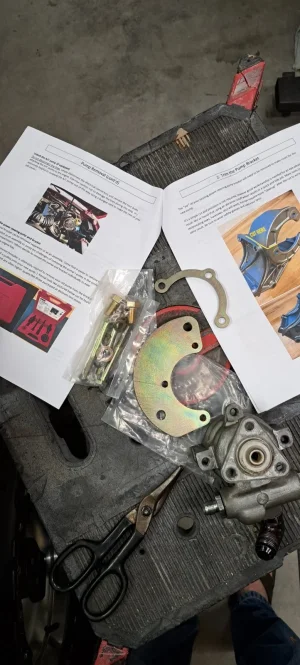

the spacer. 3/16. you can make one but i had a kit for a conversion for a oh motor. it came with a spacer. the kit cost $80 from ebay proquipped.

basic instructions
remove belt.
remove the AC compressor and strap it up or set it aside not to damage or disconnect the lines.
drain power steering pump.
remove fan shroud for more working clearance .
remove power steering hoses.

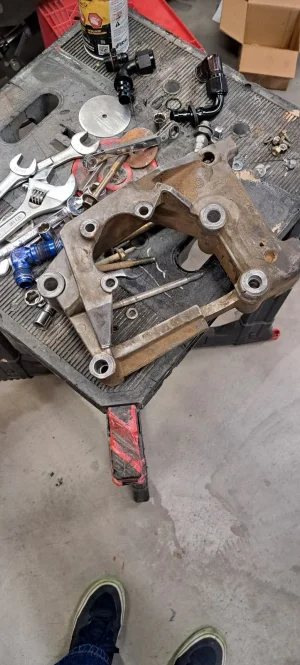

remove pump and bracket assembly.

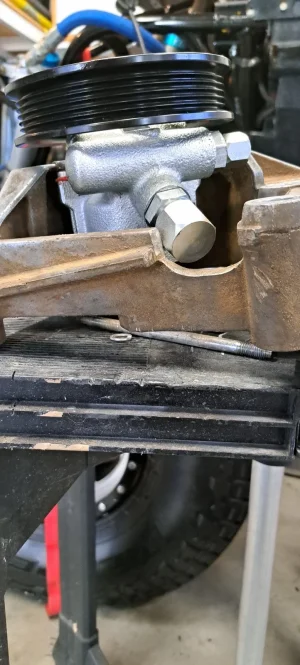

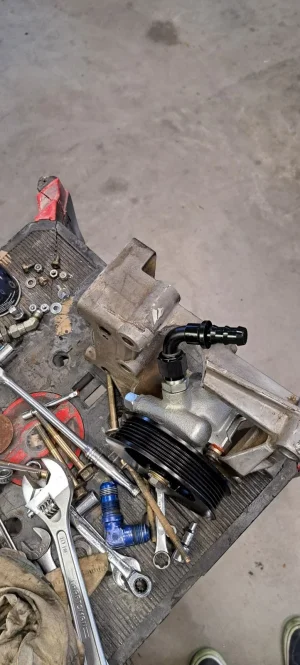

test fit new pump in the bracket assembly.

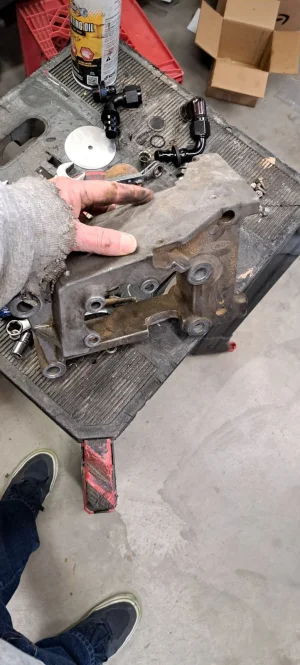

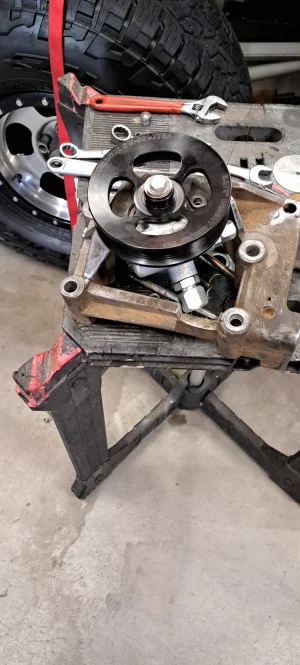

mark out how much the clearance the bracket assembly. its a good amont.
also had to clearance a little on the head. it was like a nub sticking out and it inter feared with the suction hose.
then start re assembly.

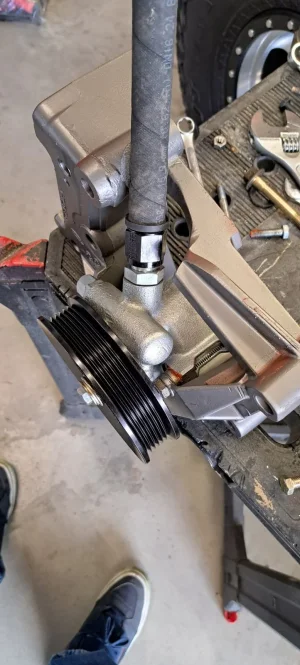

my discharge high pressure hose is a -6 as recommended by howe. it has 2 90* and only about 8"
as recommended by howe i used a -8 out of the box to the cooler, -8 from cooler to reservoir.

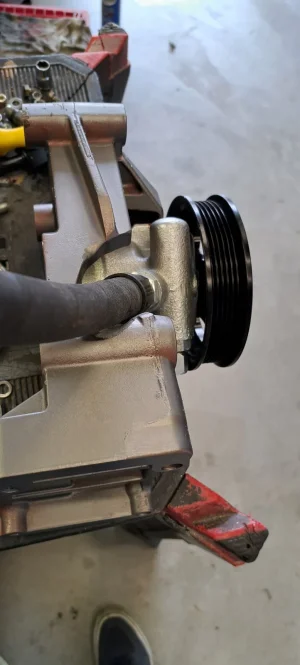

for the i fluent (suction) of the pump i used a -10 (as recommended). i used a straight fitting into the pump.

other then the high pressure hose, i used all push lock hose and fittings. they were easier to work with and going into the pump is tight. i tried the cloth high pressure hose but they are bigger.
so far it is working great.
