Shock mounted angle

[Fifty]

Hey @ADSRACINGSHOCKS can you do an article on shock angle and it’s effect on ability?

Meaning if you take a smoothie, and mount it at 90° to full compression it will have a base valving percentage (essentially 100%)

Now if you lay it over at 10° forward, how much does it loose to leverage? 20°?

What is ideal for leaf’s if you can’t get 90° at bump? A arms?

What is the max angle where you should really consider redesigning everything?

Any other voodoo magic info?

Ps, I’m a fan… kisses… juiciest of kisses… and I know I know, fords are better.



[RothShocks]

Not my numbers but some decent Info here



[RothShocks]

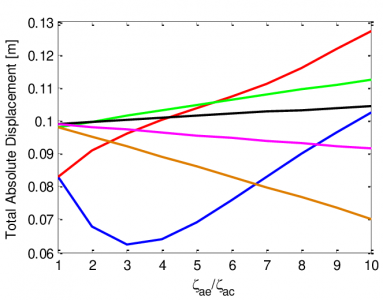

0º - normal damping force (blue line)
0 º - inverse damping force (red line)
45 º - normal damping force (green line)
45 º - inverse damping force (brown line)
90 º - normal damping force (black line)
90 º - inverse damping force (magenta line)

Influence of Shock Absorber Installation Angle to Vibration Behavior of Automotive Vehicle using (SDOF) system
