PICTAFIEDESIGN F150 Luxury Centermount Build

[Pictafiedesign]

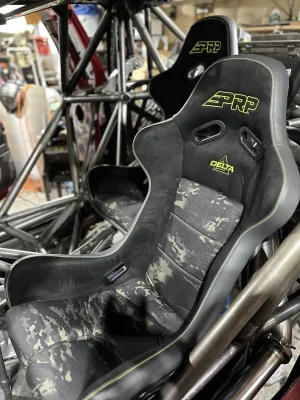

I wish I added the seat heaters to my deltas. Are they just in the removable back and seat pad? Thinking about just adding some. Seats look killer!

Yeah the heaters are just in the cushions so, they might be able to add them relatively easy for you I would think! Thanks man, can't wait to start on the interior!



[2012SVTSC]

This build is awesome. Nice work on everything.



[Pictafiedesign]

This build is awesome. Nice work on everything.

Thanks man! I appreciate it!



[Pictafiedesign]

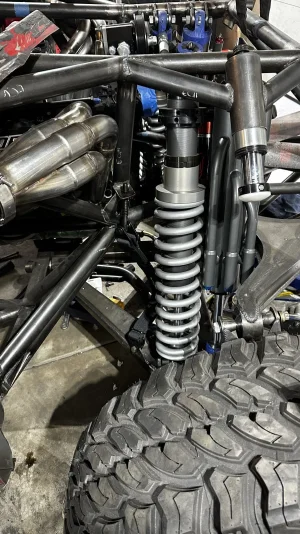

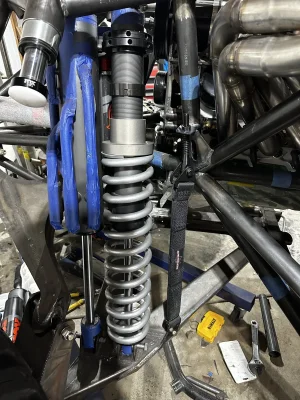

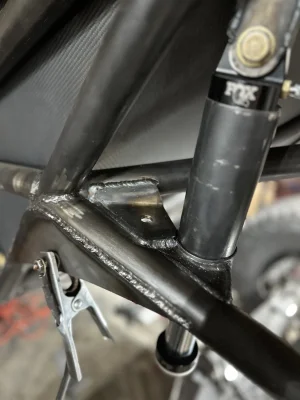

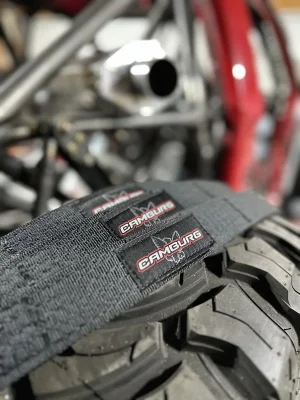

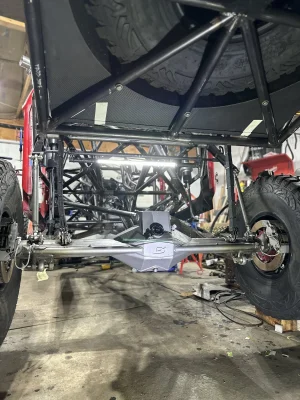

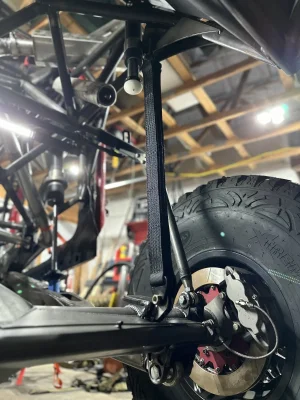

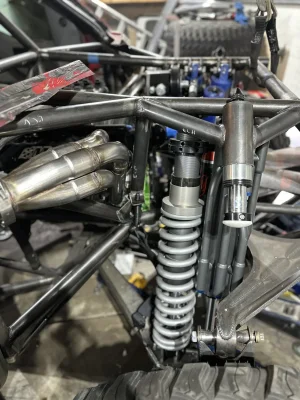

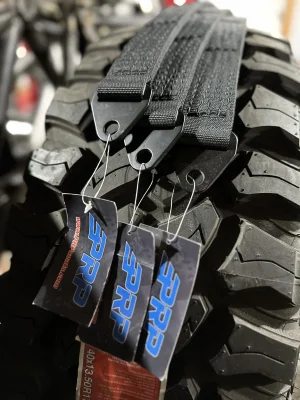

Got the front and rear limit straps put on. Headers and exhaust are done as well. Making progress!



[ChristianEwing]

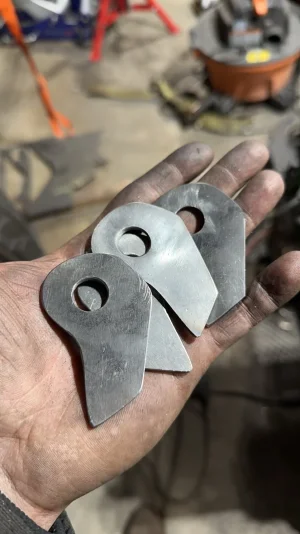

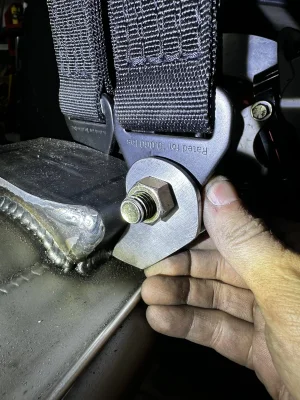

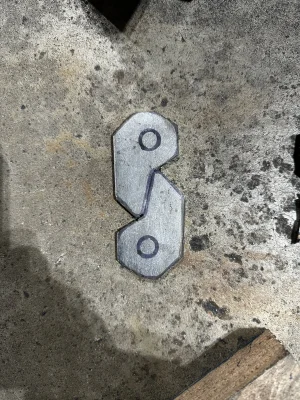

You are going to need to add more structure to that upper clevis mount for the front limit straps, that tabs gonna bend over like a wet noodle from all the weight its trying to support. One tab on each side going up to the engine cage tube off the tab you already have as gussets will help alot! If that tab thats already there sticks off the side of the engine cage tube 2", go up the engine cage tube 3" with your gusset tabs. You want more surface area on the engine cage tube so it doesn't rip itself off over time



[Pictafiedesign]

You are going to need to add more structure to that upper clevis mount for the front limit straps, that tabs gonna bend over like a wet noodle from all the weight its trying to support. One tab on each side going up to the engine cage tube off the tab you already have as gussets will help alot! If that tab thats already there sticks off the side of the engine cage tube 2", go up the engine cage tube 3" with your gusset tabs. You want more surface area on the engine cage tube so it doesn't rip itself off over time

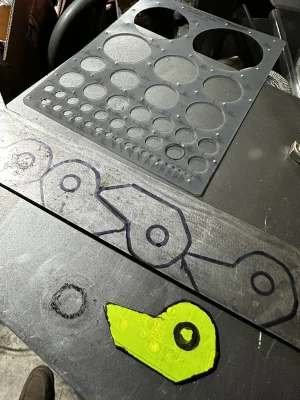

Doesn’t show it in any of these pics but, I just did that



[FasterNU]

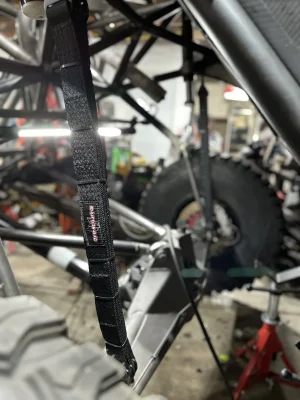

probably just the angle of the pics.. but it almost looks like the rear limit straps would crash into each other at full bump....



[Pictafiedesign]

probably just the angle of the pics.. but it almost looks like the rear limit straps would crash into each other at full bump....

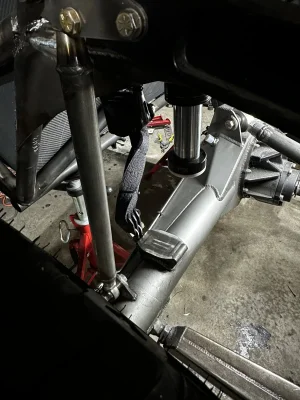

There's a bungee that actually pulls them together at full bump but they don't touch. Just don't have it in pics



[the bodj]

There's a bungee that actually pulls them together at full bump but they don't touch. Just don't have it in pics

I think he’s talking about the metal part of the straps, but I believe that’s what the spring loaded clevis is for



[Pictafiedesign]

I think he’s talking about the metal part of the straps, but I believe that’s what the spring loaded clevis is for

Ah that probably makes more sense lmao. They do not also



[Pictafiedesign]

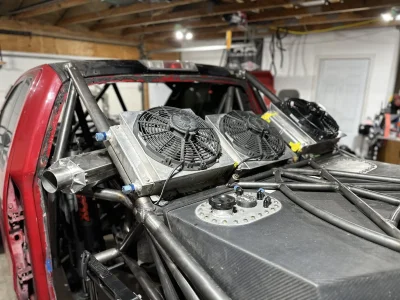

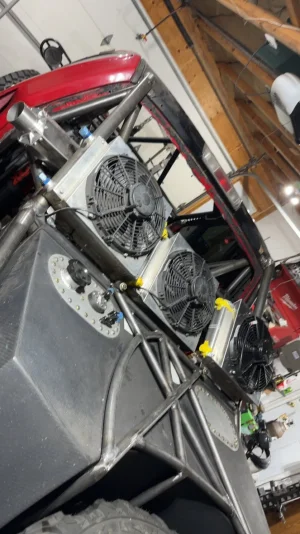

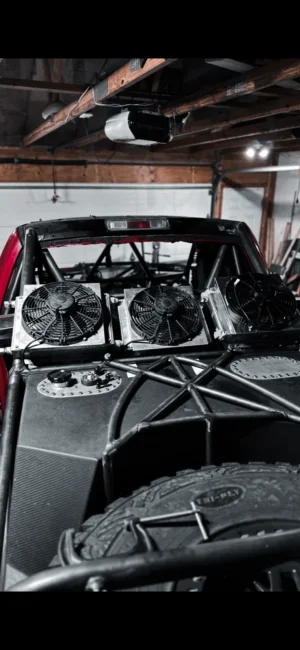

Was able to mount up the 2 trans and 1 engine oil cooler on the back.

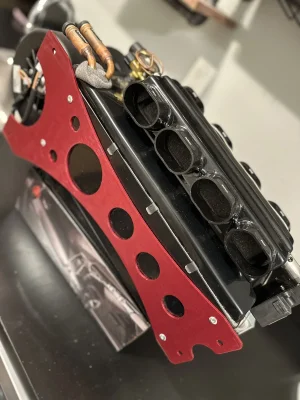

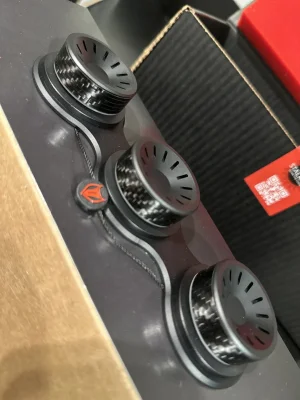

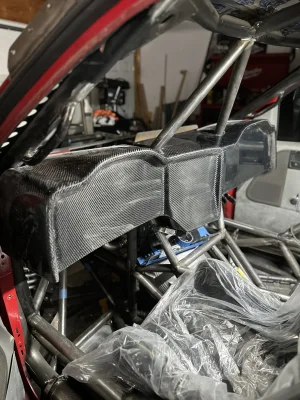

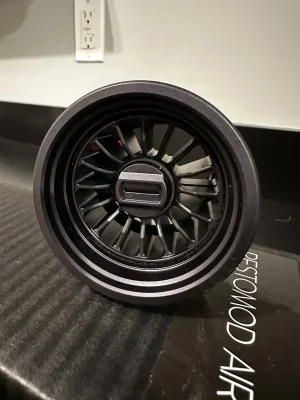

Also had the restomod air unit show up as well. These things are a work of art.



[Pictafiedesign]

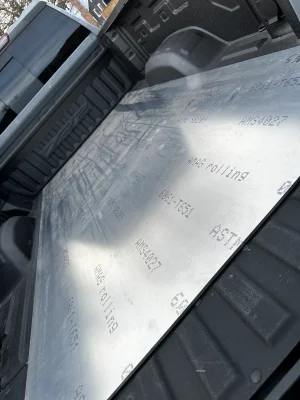

Picked up a couple sheets of 1/4” 6061 for the belly pans and fuel cell skids as well.



[FasterNU]

the restomod packaging made me LOL when i got mine. Like way over the top...



[Pictafiedesign]

the restomod packaging made me LOL when i got mine. Like way over the top...

I'd rather have it way over the top than have busted shit come in though lol. I've gotta give it to them, everything is thought of branding wise.



[Pictafiedesign]

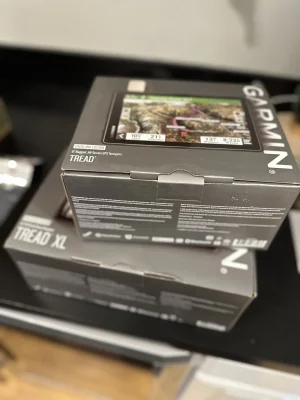

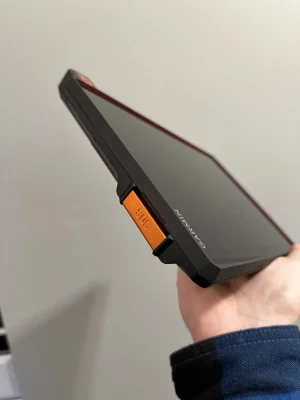

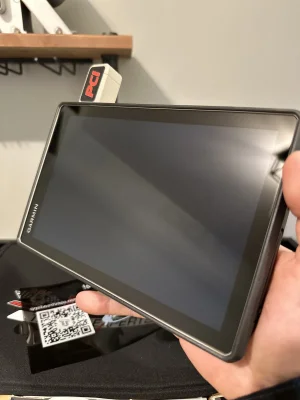

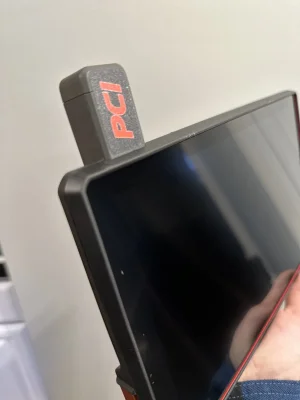

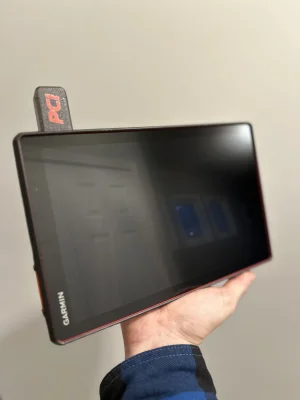

Got the navigation for the truck all sorted out! Garmin 10” baja tread xl and an 8” tread



[Pictafiedesign]

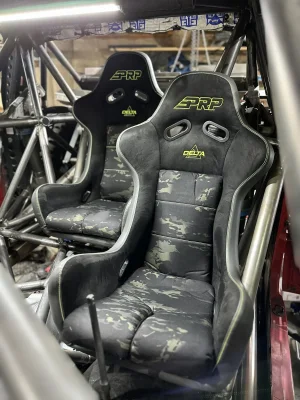

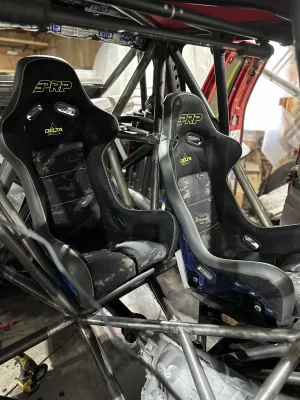

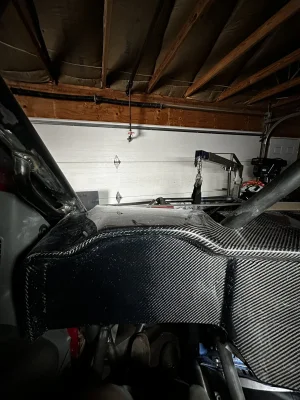

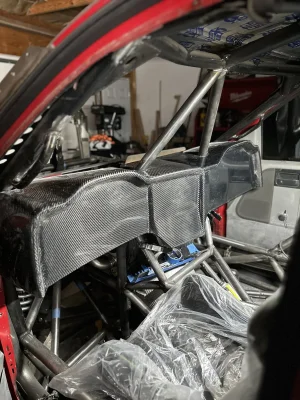

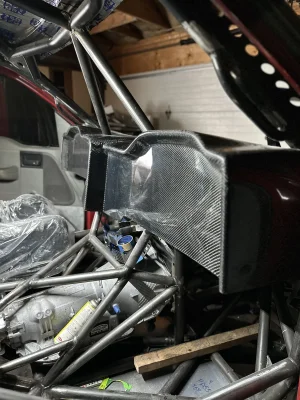

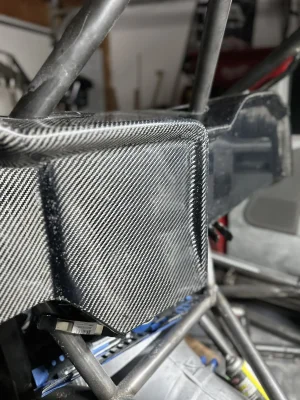

Starting to mock up seating. Was able to rework the trans tunnel to make the 3rd seat a little more roomy for the feet.



[Pictafiedesign]

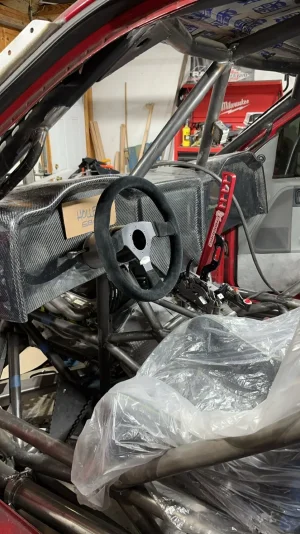

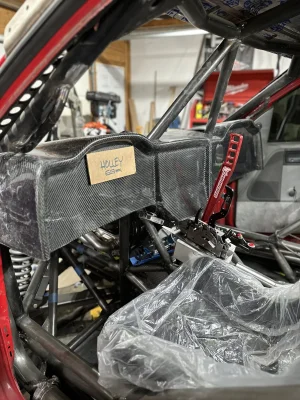

Started mocking up and mounting the dash and the hand brake and shifter. Next steps need to start hard mounting everything and then do the steering.



[gascapkevin]

that Holley Gauge is dialed in



[Pictafiedesign]

that Holley Gauge is dialed in

Ready to rip! LOL



[Pictafiedesign]

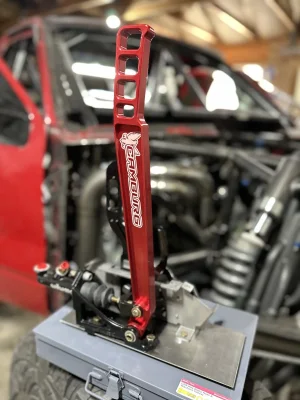

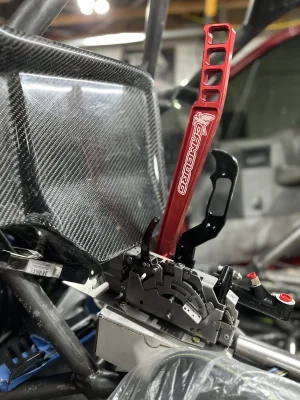

Got the steering wheel in place and the handbrake/ shifter solid mounted.

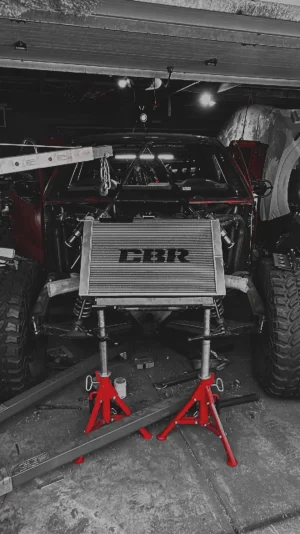

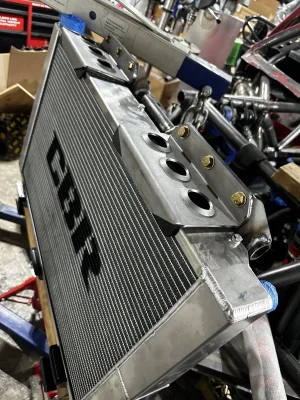

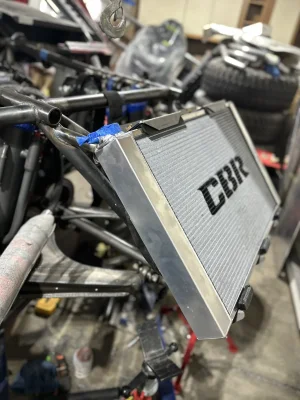

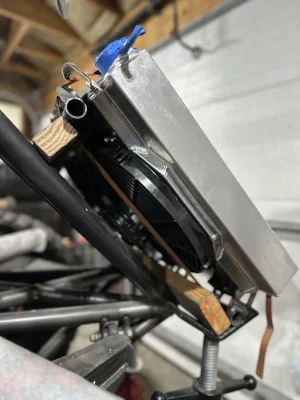

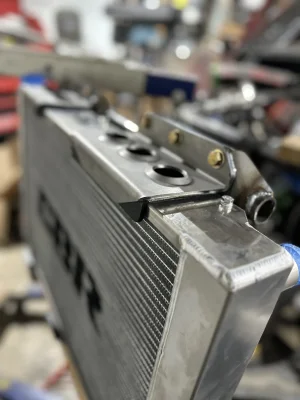

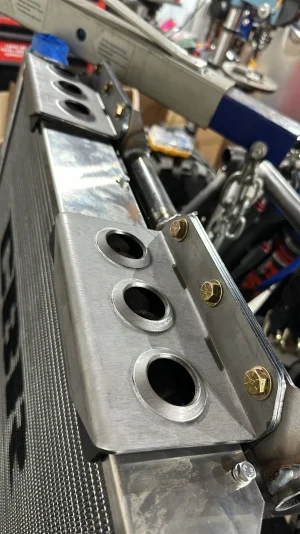

Waiting on my box/pan brake to show up so I can start paneling the interior so I moved to mounting the front radiator. Need to still mount the ac condensor infront of it as well.
