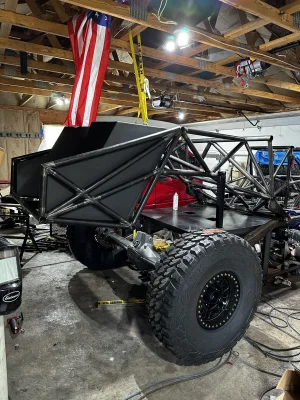

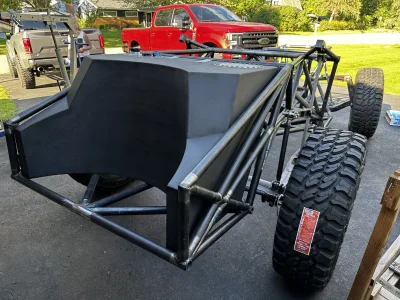

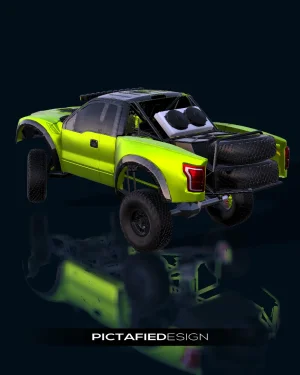

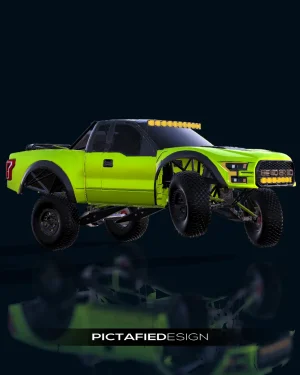

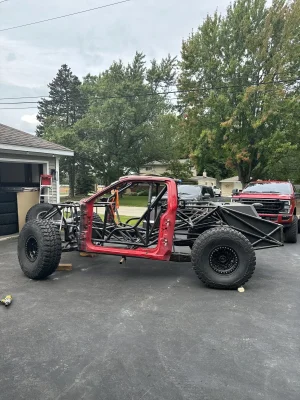

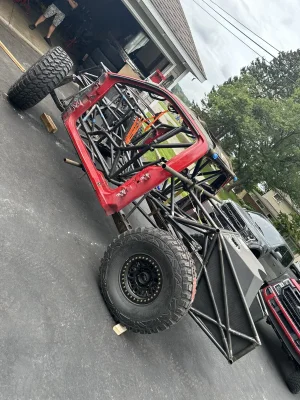

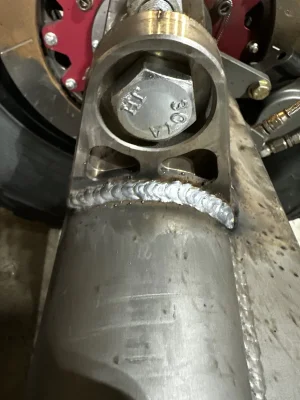

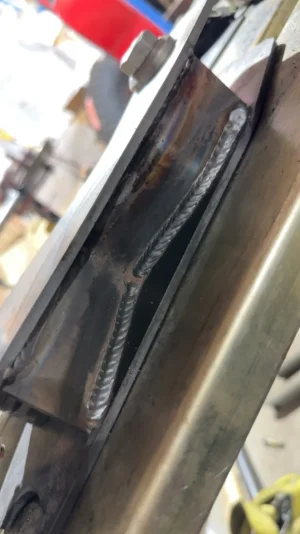

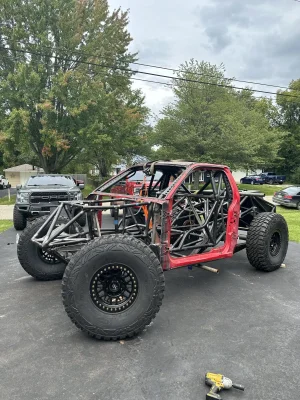

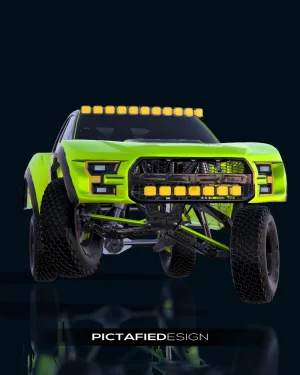

Hey guys, here’s a little intro to my build currently in the works. (Parts, design, fabrication.) life for this truck started out in Arizona as a truck known as ClifFord. I bought it from a guy in texas that didn’t need it anymore for his race team. Long story short I snapped the intermediate shaft in the transmission when it was a perfectly capable linked/caged/long traveled truck lolol. Now it’s turned into a blizzard project.

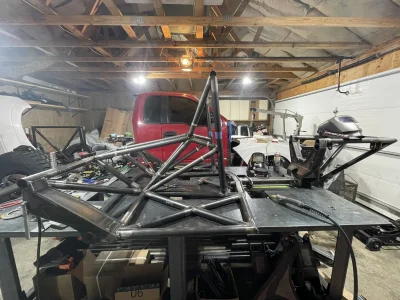

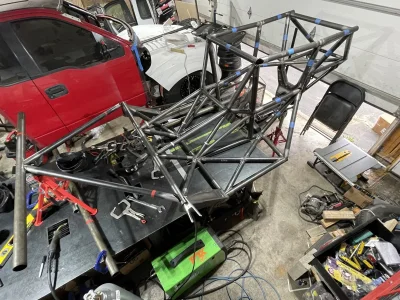

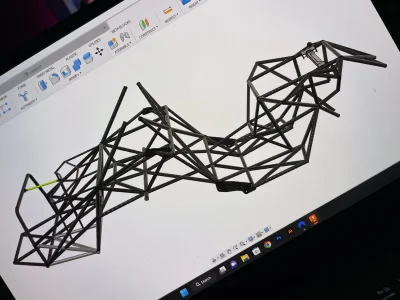

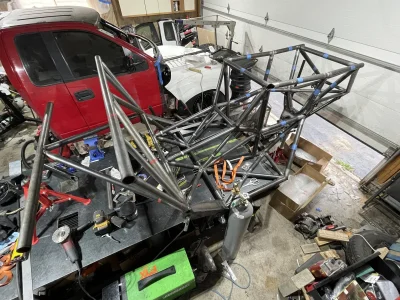

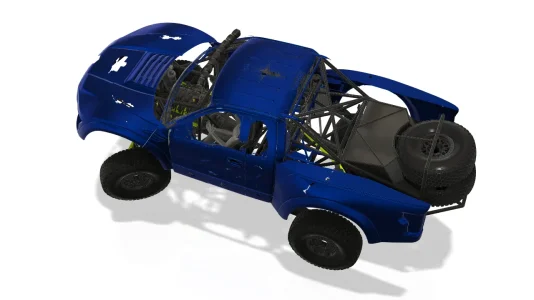

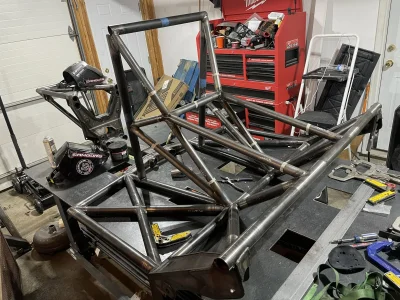

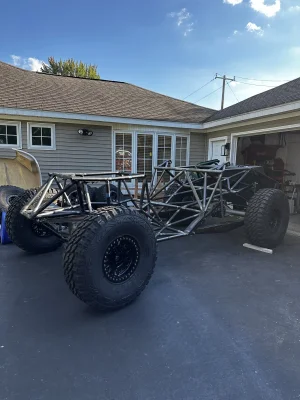

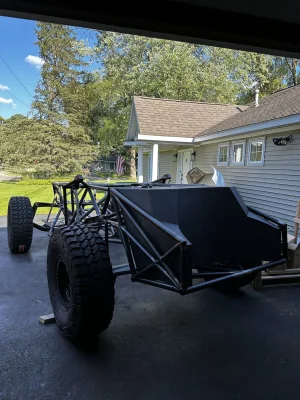

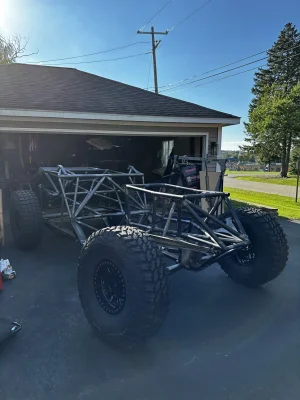

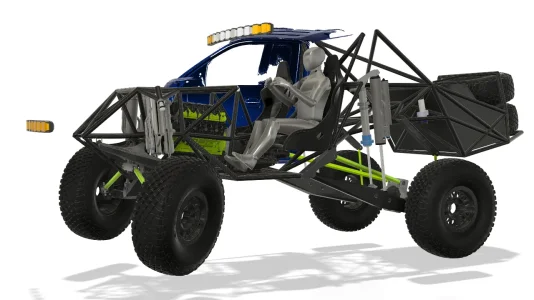

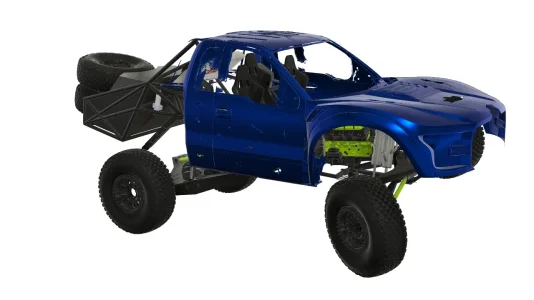

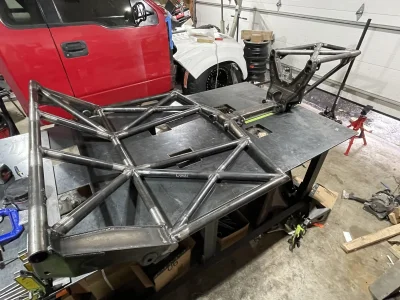

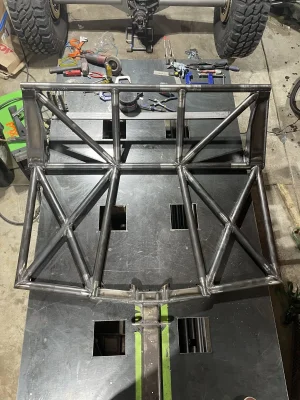

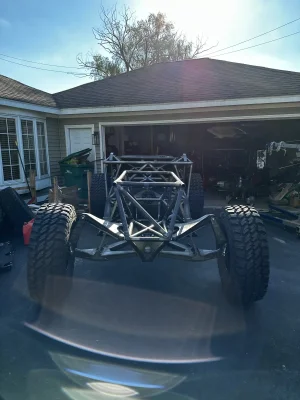

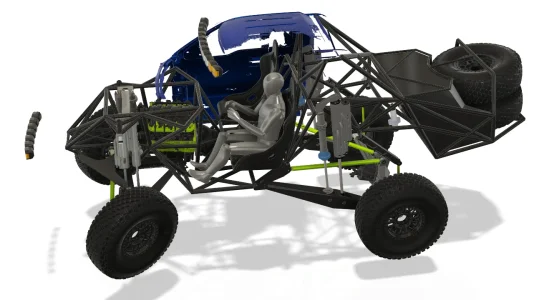

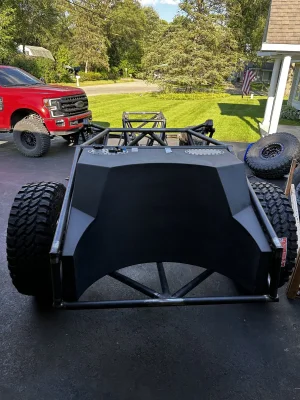

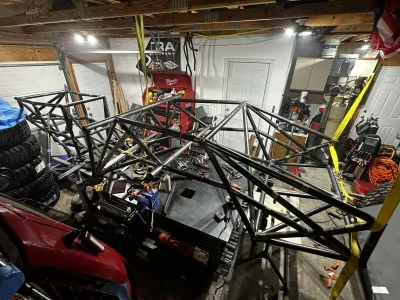

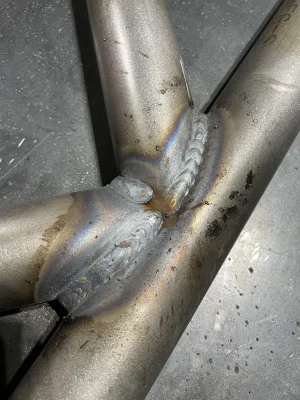

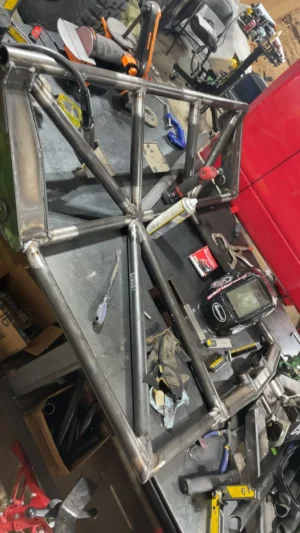

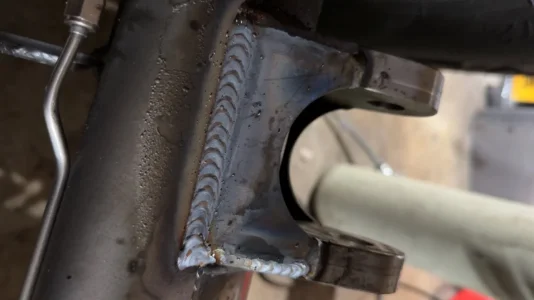

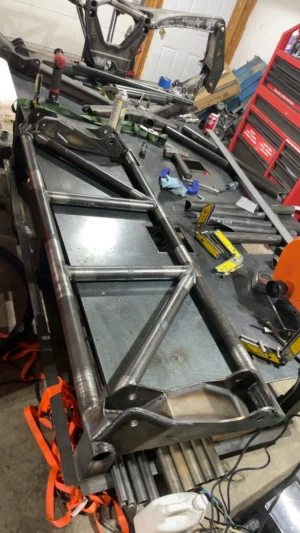

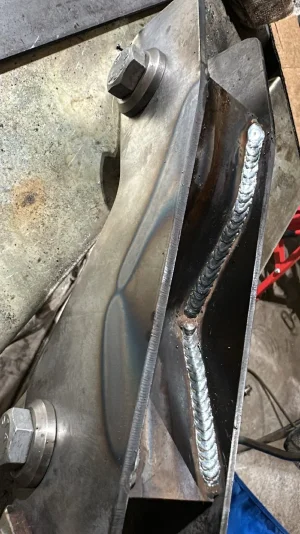

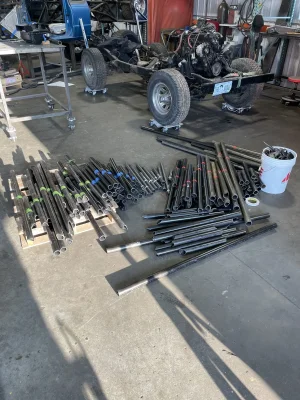

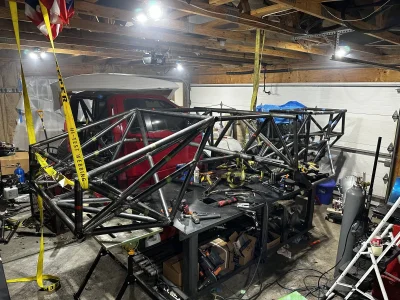

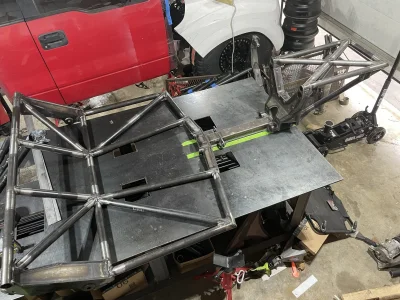

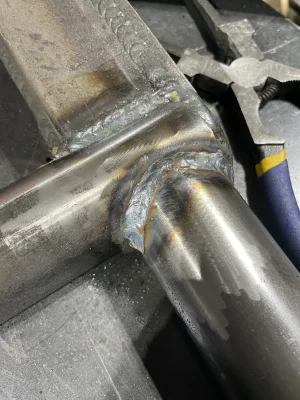

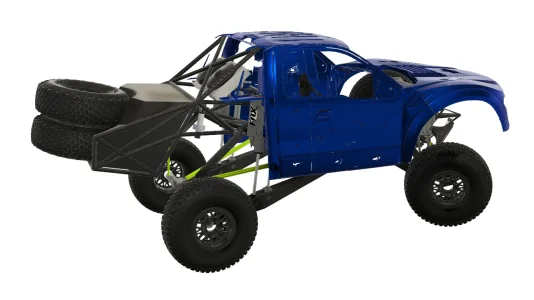

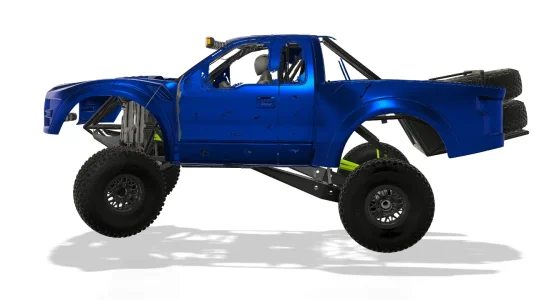

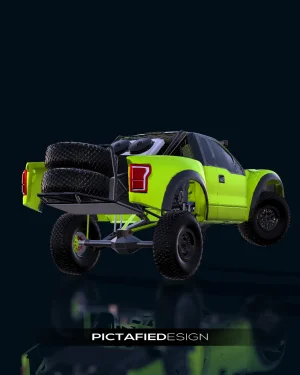

I scanned the cab/fiberglass and then designed the chassis in fusion 360 and a buddy of mine and I built a cnc tube notcher to cut it out.

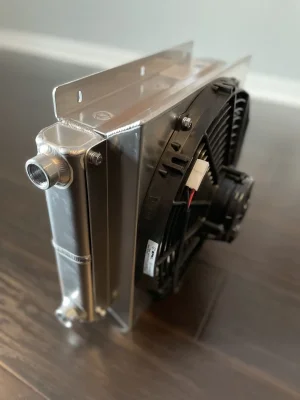

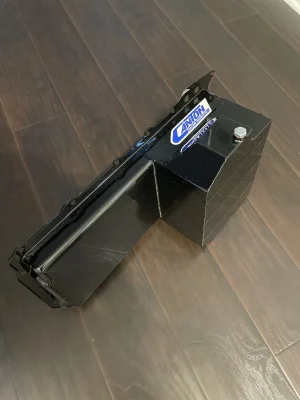

Parts list:

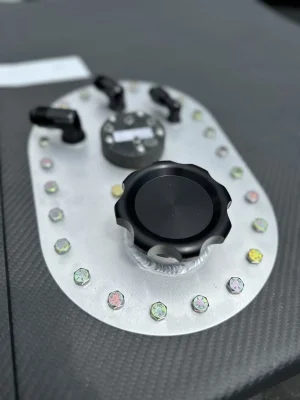

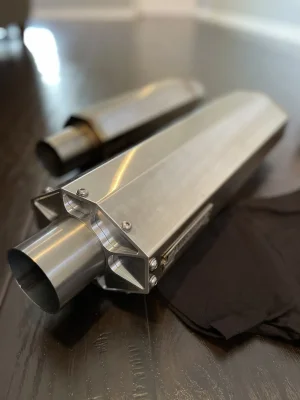

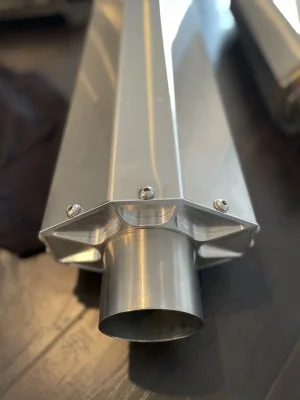

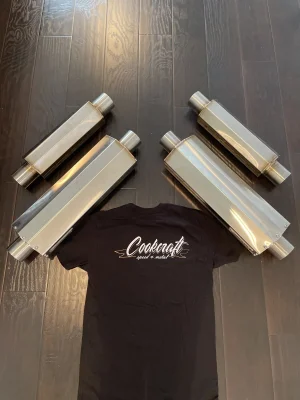

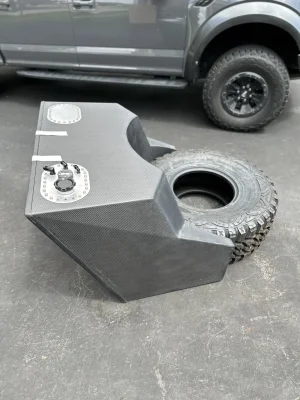

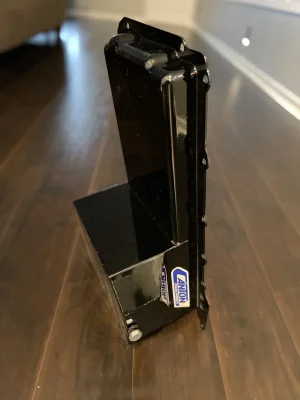

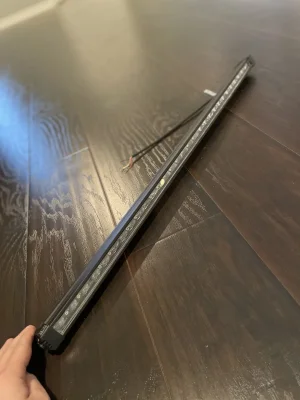

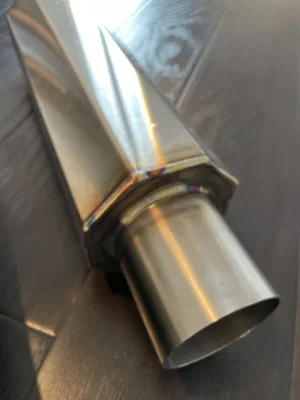

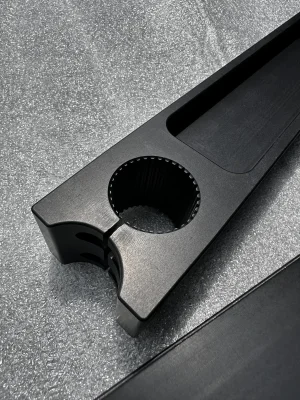

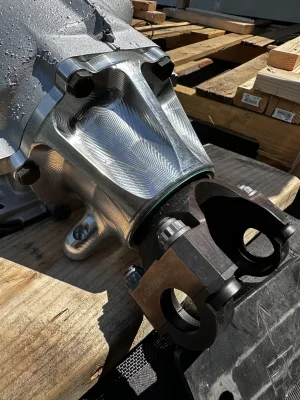

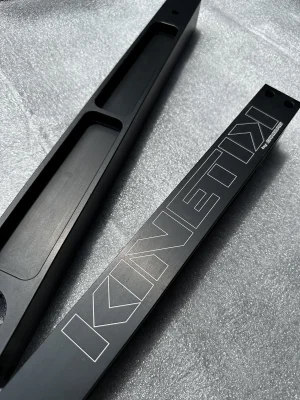

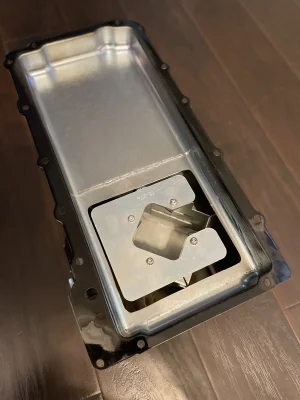

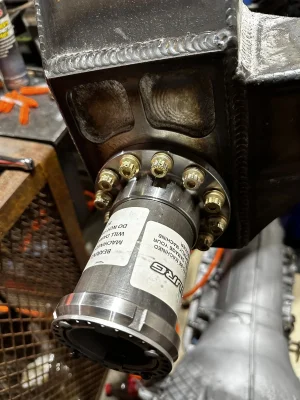

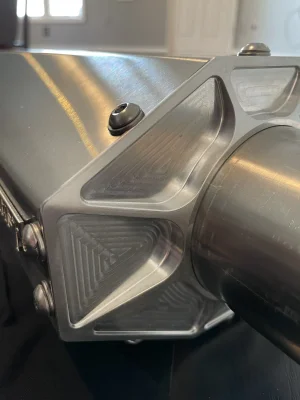

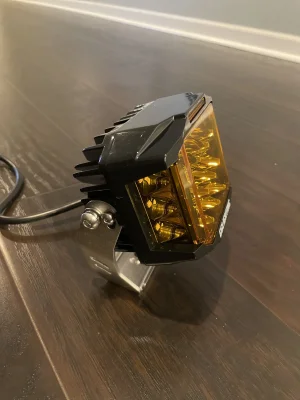

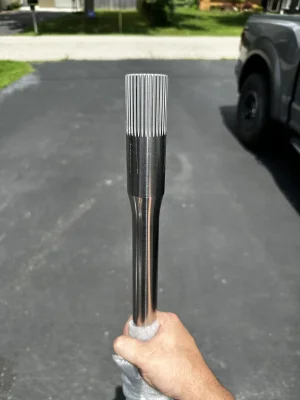

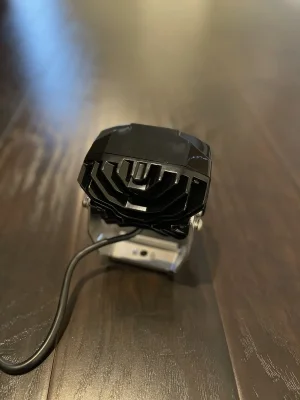

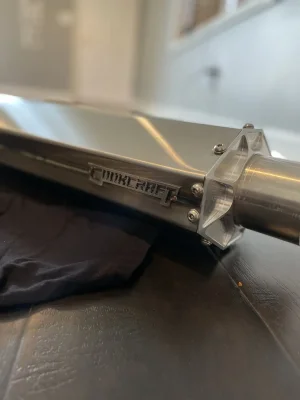

Camburg centermount, camburg TT rear 4” housing, gearworks 10” third member, jumbo 36 spline TT axles, camburg TT snouts and hubs, camburg 1 5/8 sway bar with billet upper links, racer engineering 100 gallon radius fuel cell, fiberwerx gen 2 luxury prerunner glass, fiberwerx flagship carbon fiber full size dash, raceline forged ryno beadlocks, procomp 40” tires, moruzzi 416ci stroker, full billet trans done by Juanco, 18 - GG Lighting CB60s for the front with rock lights and rear facing light bar, full Howe TT steering system with 3.0 rack, cookcraft mufflers/resonators, fox shocks 4.4x18” bypasses in the rear with 3.0x16” coilovers, 4.0x14” bypass with 3.0x14” coilovers in the front. (Still waiting on those. Month 18….
)

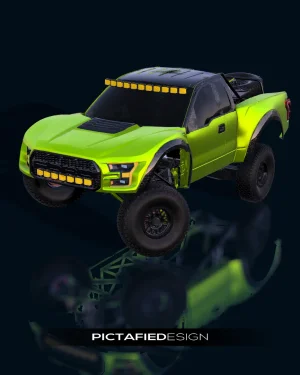

I’ll post some fusion 360 stuff as well as fabrication and things as well.
Sorry for the photo dump
I scanned the cab/fiberglass and then designed the chassis in fusion 360 and a buddy of mine and I built a cnc tube notcher to cut it out.
Parts list:
Camburg centermount, camburg TT rear 4” housing, gearworks 10” third member, jumbo 36 spline TT axles, camburg TT snouts and hubs, camburg 1 5/8 sway bar with billet upper links, racer engineering 100 gallon radius fuel cell, fiberwerx gen 2 luxury prerunner glass, fiberwerx flagship carbon fiber full size dash, raceline forged ryno beadlocks, procomp 40” tires, moruzzi 416ci stroker, full billet trans done by Juanco, 18 - GG Lighting CB60s for the front with rock lights and rear facing light bar, full Howe TT steering system with 3.0 rack, cookcraft mufflers/resonators, fox shocks 4.4x18” bypasses in the rear with 3.0x16” coilovers, 4.0x14” bypass with 3.0x14” coilovers in the front. (Still waiting on those. Month 18….
)I’ll post some fusion 360 stuff as well as fabrication and things as well.
Sorry for the photo dump

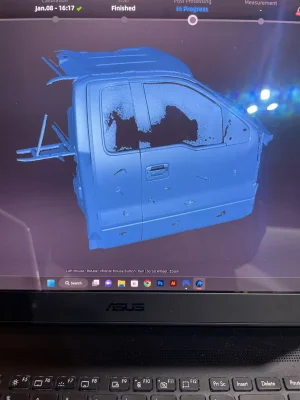

the scanner I’m using is an einstar 3D scanner. For under $1000 this thing kicks ass.
