Brake line routing on beams

[Thefuntruck]

Anyone have good pictures on beamed truck of how to run the brake line down to the radius arm mount, flex lined, then hardline down radius to beam/knuckle then flex to caliper. I want to order parts but was hoping to steal someone’s design.
Thanks for the help.



[85Yota]

No real design to steal. I personally use -3AN flex lines on each end that are the same end and then use 3AN flare on hardline to a bulkhead that is bolted to the radius arm at each end. Then banjo adapter for the end to caliper.



[marcytech]

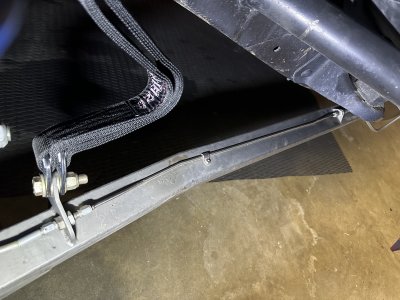

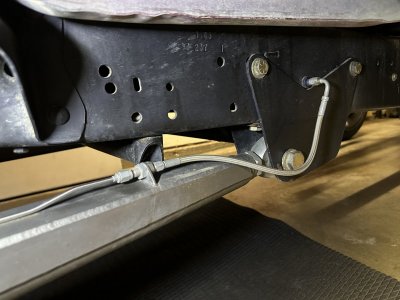

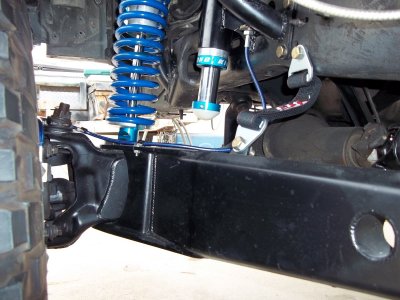

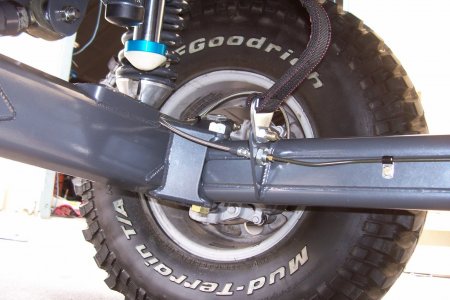

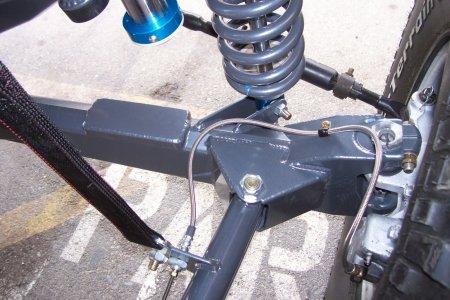

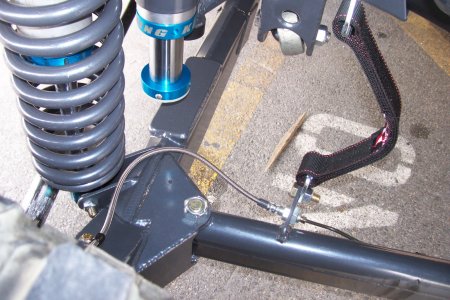

Here’s some of mine



[the bodj]

I’ll get you some pictures tomorrow. All you’ll need are 12” -3 flex lines at each pivot. Run hard line from master cylinder down the frame to the radius arm pivots, nut and flare it, flex line to bend at your pivot, hard line down the radius arms to the beams, flex to the banjo that goes into the caliper.

I had never done brakes before and it’s become one of my favorite things to do. I think they’re fun to make!

Use this tool

https://www.amazon.com/gp/aw/d/B01HOXH242?psc=1&ref=ppx_pop_mob_b_asin_title

Here are the parts you’ll need and the quantities I used

Flex lines x4

https://www.amazon.com/gp/aw/d/B009Q75526?psc=1&ref=ppx_pop_mob_b_asin_title

Banjo fittings (I believe these are the ones I used for the fronts: bronco calipers) double check with what you need, and check if 90 or 45* is what you need. Might be wise to buy both and return what you don’t use)

https://www.amazon.com/gp/aw/d/B0014BBFNU?psc=1&ref=ppx_pop_mob_b_asin_title

X1 pack of weld on tabs

https://www.amazon.com/gp/aw/d/B006K8RL4Y?psc=1&ref=ppx_pop_mob_b_asin_title

X1 clips

https://www.amazon.com/gp/aw/d/B09K3BLQ43?psc=1&ref=ppx_pop_mob_b_asin_title

X1 of these. These go through the weld on tabs above and the clips hold them in place

Amazon.com

I bought x2 of these and keep the spares in my truck

https://www.amazon.com/gp/aw/d/B08CBPSG6P?psc=1&ref=ppx_pop_mob_b_asin_title

X1 of these. You’ll need it to split for both sides of the truck. The other can be used when you do the rear brakes

Amazon.com



[the bodj]

Edit: you’ll need longer flex line if you run it around the shock like Marcy. Also I didn’t go through the frame on mine



[Giant Geoff]

You can route them up the radius arms but them it sucks when you have to pull the tranny or you can run it behind the shocks and up to the frame.



[Thefuntruck]

Wow ask and you shall receive. That helps a lot. Thanks guys.
I was planning to keep the line behind the coilover but that’s interesting looping it around.
Is the factory line 3/8x24 to thread into the master? Everything else is new from there but that has to be factory size.



[marcytech]

I was always told to route it in a way that it’ll move the least. Not saying it’s the best or only way, just the way I learned and have always done it. Hasn’t failed me yet!



[Thicks91]

Anyone have good pictures on beamed truck of how to run the brake line down to the radius arm mount, flex lined, then hardline down radius to beam/knuckle then flex to caliper. I want to order parts but was hoping to steal someone’s design.
Thanks for the help.

I’ll be posting some pics tomorrow of brake line routing on my beams and lower crossmember
