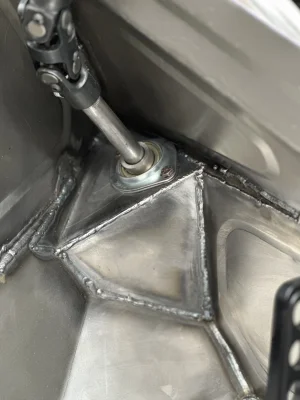

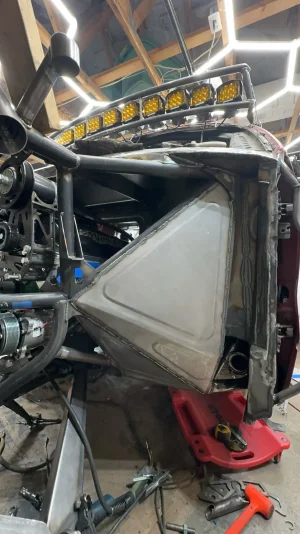

Made quite a bit more progress on the drivers side panels. Finalized steering and got the firewall uniball setup. Getting closer to finalized interior and after that I can move on to mounting rear fenders/tail lights, couple misc things then it’s tear down and Powdercoat time!



[Pictafiedesign]

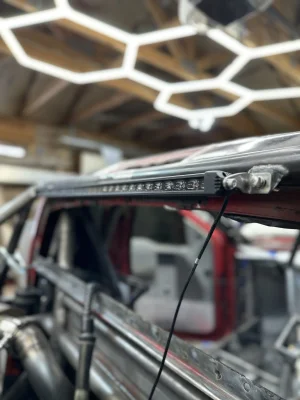

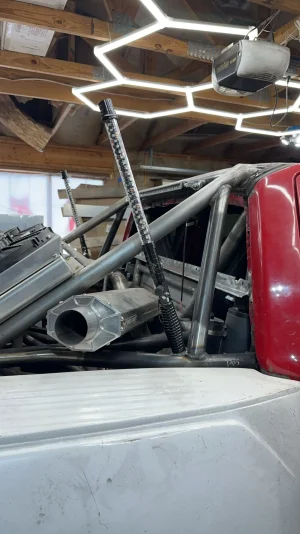

Took a break from interior paneling stuff. Removed the rear coils so it’s easier to work on a few things. Patched a couple holes in the roof and mounted the GG Lighting rear brake light.



[Pictafiedesign]

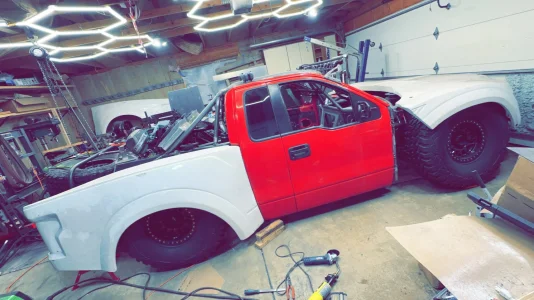

Pretty decent update.

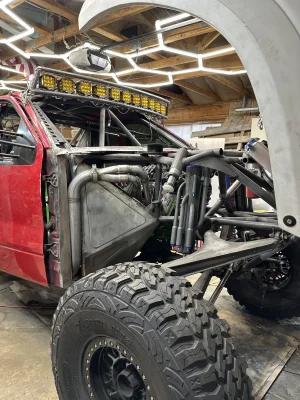

Front end is together.

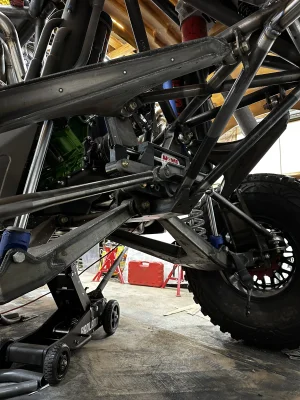

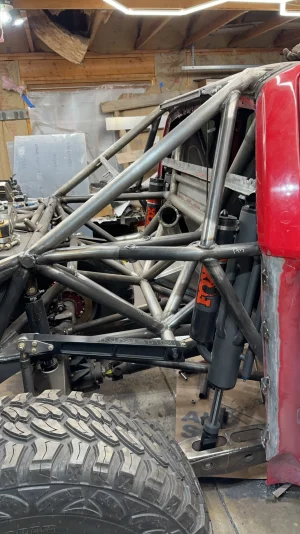

pulled the front shocks after to set it on the ground and get the rear fenders done.

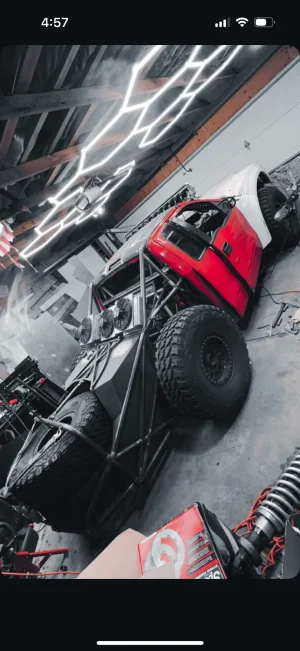

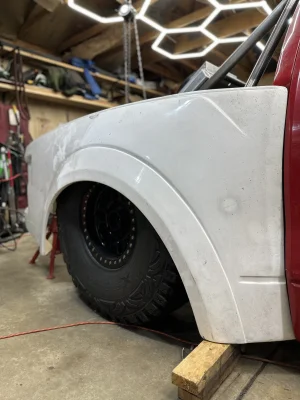

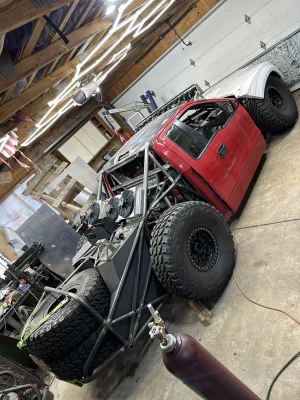

This thing full bump is pretty crazy looking. I’m 5’9 for reference.


Started mounting rear glass and made some brackets for some hidden hardware.

Tucked harder than Jenner



[BlackJacket705]

So its going to be Midwest Dirtfest 25 ready?



[FasterNU]

Yea, nice tuck. Finkle is Einhorn!

What is lowest point and measurement?

bedside glass doesnt seem to match that cab perfectly at the body line where the cab flares out at bottom??

Feels good to see it like that too, huh!!?



[the bodj]

bedside glass doesnt seem to match that cab perfectly at the body line where the cab flares out at bottom??

I think that's the shadow from the cab your seeing. Glass looks to fit pretty well!



[Pictafiedesign]

So its going to be Midwest Dirtfest 25 ready?

It’ll be ready but not sure I’ll run it at that track.

Yea, nice tuck. Finkle is Einhorn!

What is lowest point and measurement?

bedside glass doesnt seem to match that cab perfectly at the body line where the cab flares out at bottom??

Feels good to see it like that too, huh!!?

Lowest point is 4” from the ground. Lowest height at the roof is 57” when bumped.
Glass fits really well actually everything lines up perfectly just a shadow messing with that cab line. Thanks man I’m super pumped to have to this point!

I think that's the shadow from the cab your seeing. Glass looks to fit pretty well!

Correct! Fits awesome!!



[Pictafiedesign]

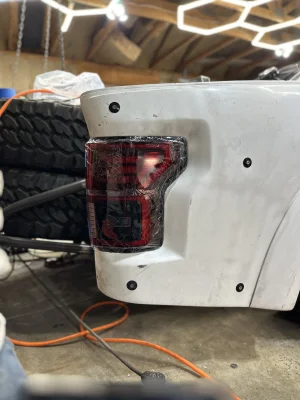

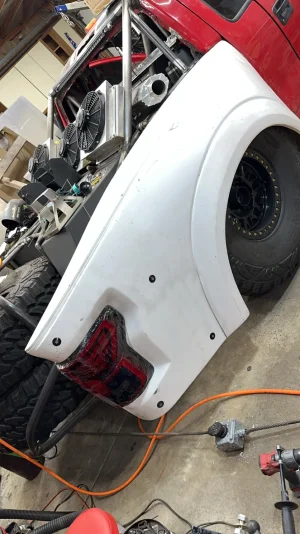

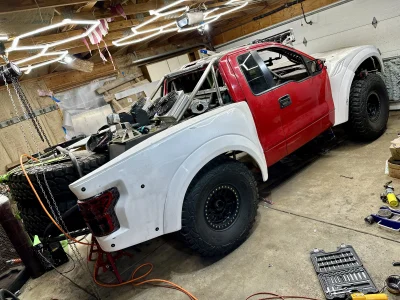

Rear fenders got some tail lights and both are mounted fully now. I need a bigger fuckin garage



[Pictafiedesign]

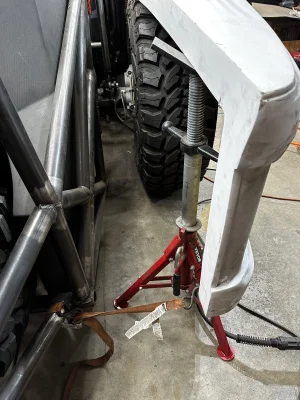

Making some pretty big steps! Starting teardown to make room to make brackets and add front brakes. And a few other misc things then it’s game time for cosmetics.

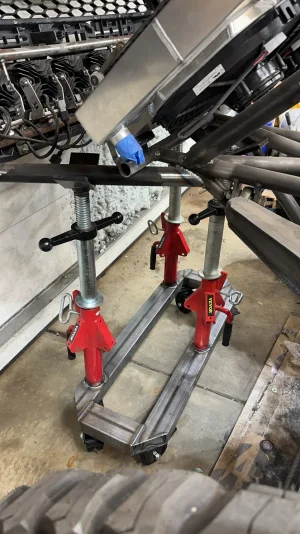

Also got rid of the death trap vevor stands and made a new truck dolly.

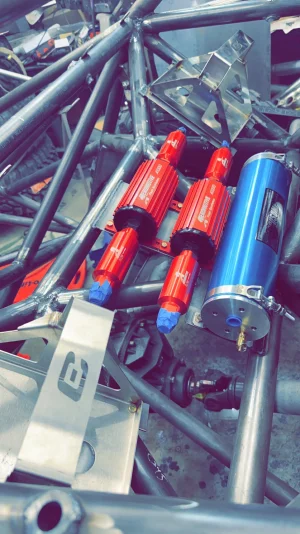

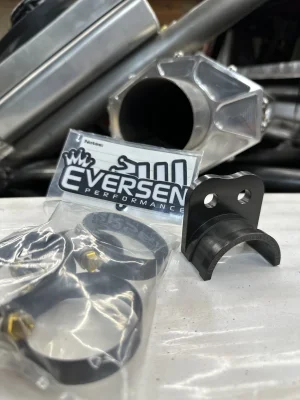

These Eversen performance bulkheads are pretty trick also.


And fuck fiberglass.



[Pictafiedesign]

Down to a small list now! Tearing it down for smaller brackets and things to mount before it goes to Powdercoat.

GG lighting Mega Whips on.


Driver firewall finished off.



[36Fan]

Hope you have better luck with Fiberwerx glass than I am. Stuff is shit.



[Pictafiedesign]

Hope you have better luck with Fiberwerx glass than I am. Stuff is shit.

Unfortunate, mine fit together quite well. I thought the mini fenders were warped at first but, it ended up just being the angle I lined them up at the cab at first.



[Pictafiedesign]

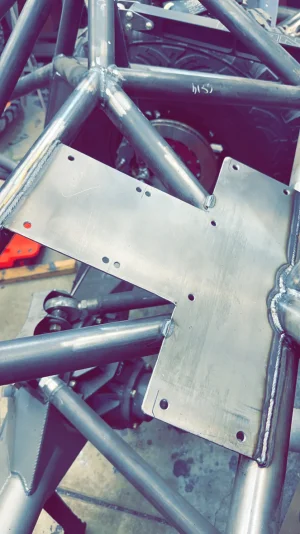

Mock-up, cut, weld, mount. Down to the short list now!



[Pictafiedesign]

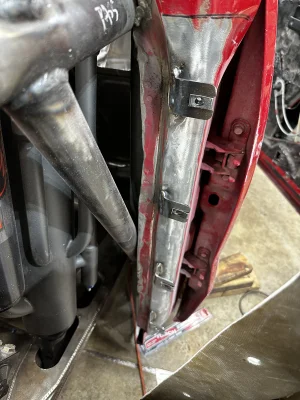

Sealed the cab off on the back of the cab corners.

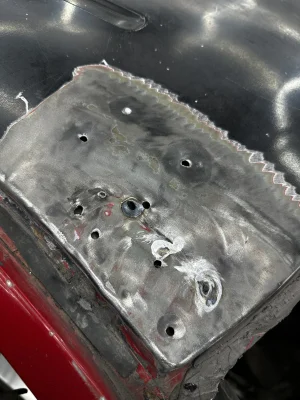

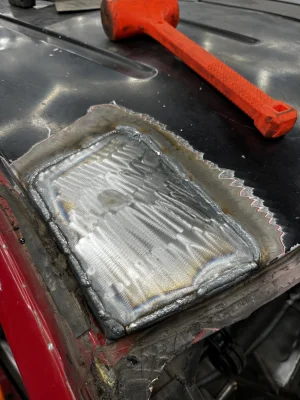

Whoever had this truck before me loved drilling holes everywhere. Patched that up on both sides until I can find a nice donor roof. (Harder to come by than I thought with a regular cab.)

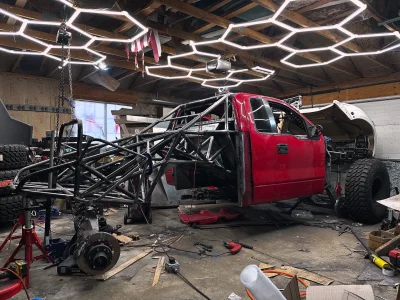

Looks pretty wild with everything coming off now.

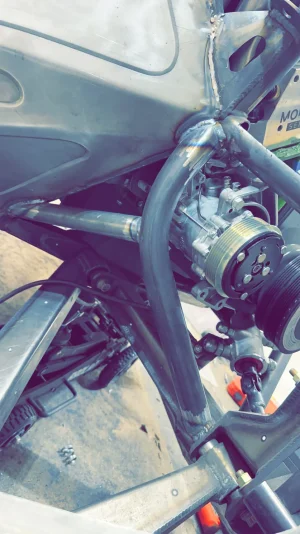

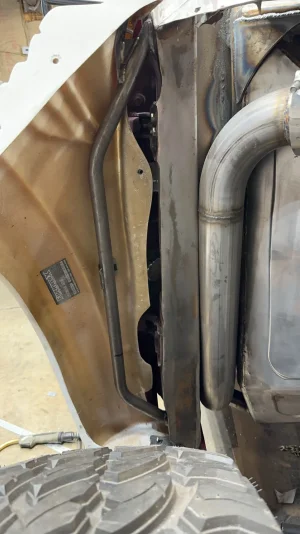

Had to redo some tubes to fit the ac compressor with a new bracket.


Fucker is close to going to powder. Hopefully end of the week. Also lowballed a dealership on a trailer so hopefully that works out also



[DesertGoat]

great work dude.
need me to get you a link on amazon for a broom though? sheeeeeeeeesh



[Pictafiedesign]

great work dude.
need me to get you a link on amazon for a broom though? sheeeeeeeeesh

Bahahahaha it gets cleaned and fucked over and over lol.

Thanks though



[Pictafiedesign]

Decent update! It’s ready for Powdercoat. I’ll be dropping it off this Saturday. Super excited to no longer see the red cab anymore

Did a shit ton of dzus tabs


Remade some tuning for the AC compressor


Popped out the motor and weighed it.


Labeled some shit so my dumbass doesn’t forget where it goes and popped out all of the heims and bearings


Made a bracket for the pressure relief valve

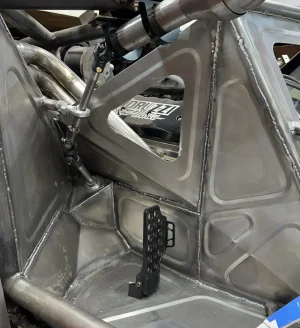

Mounted the brake pedal and tabs for the front brakes. (The brake pedal mount got more reinforced after the pic also seen is temporary hardware holding it)


The Prerunner Farm makes some badass weld on hose clamps.


She’s finally ready to become one color



[FasterNU]

I was just gonna say that brake pedal probably gonna flex the mount ... but you said you reinforced it more. I was surprised how much I was flexing shit with even my hand brake. Made me feel buff watching a 3/16 tab flexing. lol

Wonder if prerunner farm make those with different sizes? like a 10/8. If they don't they should.
