Camburg ranger spindles

[Colin.h]

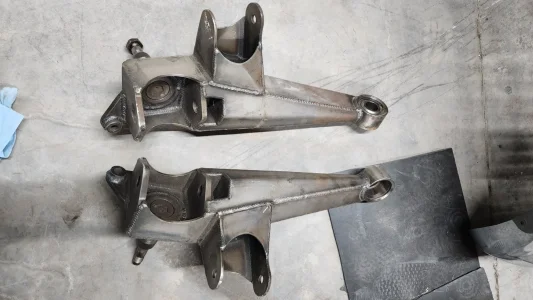

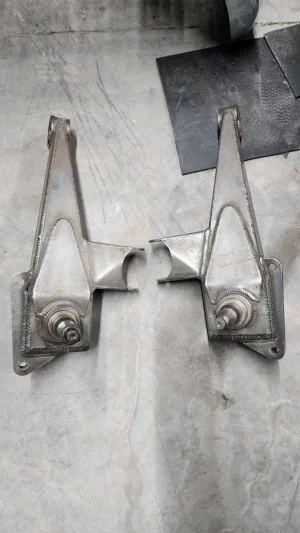

I've had these laying around for a long time so hopefully I'm right on make/model, someone correct me if not. Camburg ranger edge spindles, in great shape no cracks/repairs. $500obo, located in Lake Havasu City AZ



[96f-u250]

What spindle is used on these knuckles?



[Colin.h]

What spindle is used on these knuckles?

They accept stock hub, not sure of the technical term for the spindle type, I'm kinda 3tarded



[Chancegoodman]

They accept stock hub, not sure of the technical term for the spindle type, I'm kinda 3tarded

I believe it’s a Dana 35 snout but I could be completely wrong



[cbrewer22]

those are stock ranger brake rotor set up. dana 35 have a larger bolt on stout. stock are press in.



[515FAB]

I'm interested in the spindles. They look like rangers spindles. Are they from a long travel kit? And I wonder if there's a way to verify if their coil spring or torsion bar?



[dwphoto]

I'm interested in the spindles. They look like rangers spindles. Are they from a long travel kit? And I wonder if there's a way to verify if their coil spring or torsion bar?

Paging @Carlos_G he sweeps floors at Camburg



[cbrewer22]

Paging @Carlos_G he sweeps floors at Camburg

Changes urinal cakes as well. I believe they are the same spindles they just use different lower and upper arm due to mounting points being different. I could be wrong though.



[cbrewer22]

I'm interested in the spindles. They look like rangers spindles. Are they from a long travel kit? And I wonder if there's a way to verify if their coil spring or torsion bar?

If you guys work out a deal by Friday and you are from so cal I can pick them up for you and bring them back for you. I’ll be heading out to Havasu Friday till Sunday.



[515FAB]

I'm in IOWA. We have NOTHING for off-road. Lucky I have a full fabrication shop to use.



[Carlos_G]

Sorry, was trying to jack hammer a turd someone left on the toilet bowl.

These spindles are for our Ranger Edge Long Travel kit.
1.50" Uniball with 3/4 bolt on the lower pivot.
1.00" Uniball at the top pivot.
the spindle is an OEM ford spindle so that you can run your factory 11.25" rotor , bearings and Ford OEM brake calipers.

If you have any other questions on it, you can email me at Janitorial@camburg.com.... jk Carlos@Camburg.com works.

gotta go..I think my mop bucket is starting to overfill...



[dwphoto]

Sorry, was trying to jack hammer a turd someone left on the toilet bowl.

These spindles are for our Ranger Edge Long Travel kit.
1.50" Uniball with 3/4 bolt on the lower pivot.
1.00" Uniball at the top pivot.
the spindle is an OEM ford spindle so that you can run your factory 11.25" rotor , bearings and Ford OEM brake calipers.

If you have any other questions on it, you can email me at Janitorial@camburg.com.... jk Carlos@Camburg.com works.

gotta go..I think my mop bucket is starting to overfill...

Sorry about the skid mark .



[515FAB]

Sorry, was trying to jack hammer a turd someone left on the toilet bowl.

These spindles are for our Ranger Edge Long Travel kit.
1.50" Uniball with 3/4 bolt on the lower pivot.
1.00" Uniball at the top pivot.
the spindle is an OEM ford spindle so that you can run your factory 11.25" rotor , bearings and Ford OEM brake calipers.

If you have any other questions on it, you can email me at Janitorial@camburg.com.... jk Carlos@Camburg.com works.

gotta go..I think my mop bucket is starting to overfill...

Thanks for the info. I'll shoot you an email.



[Colin.h]

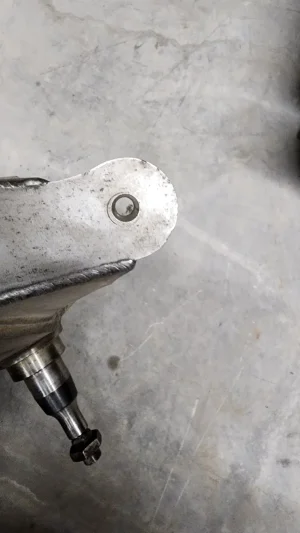

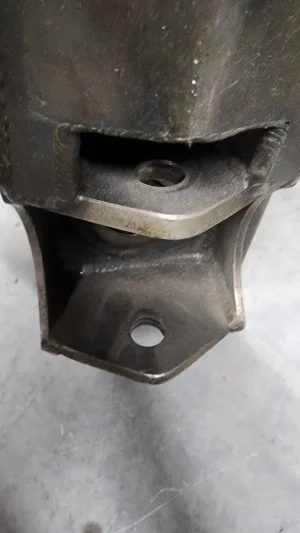

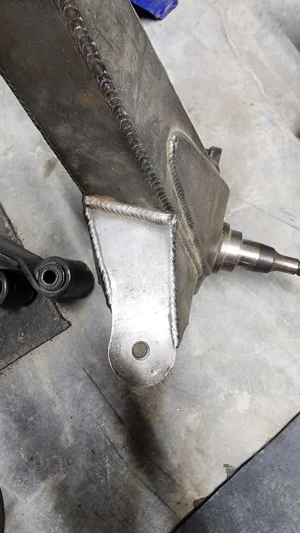

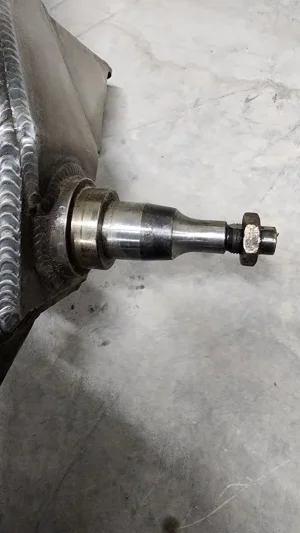

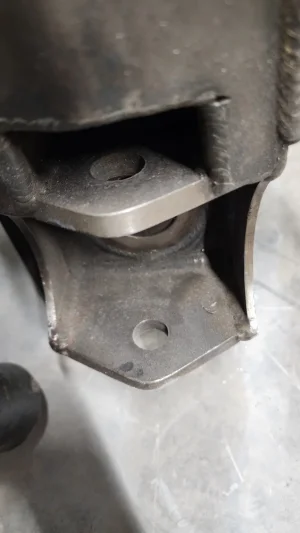

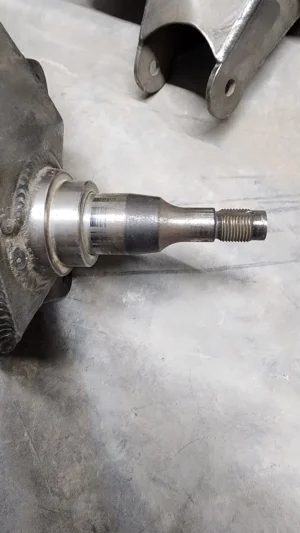

More pics, they are in great shape



[Carlos_G]

Yeah, they even have OEM pins in them. The OG ford ones have that hexagon on the back of the pin while the aftermarket junk stuff has a square or circle stamped on the back
