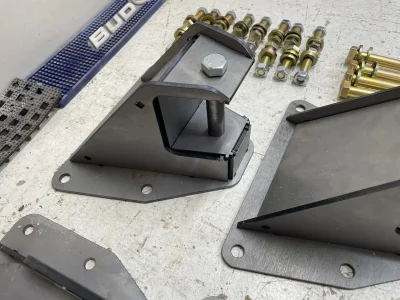

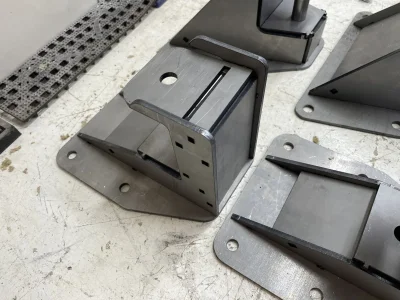

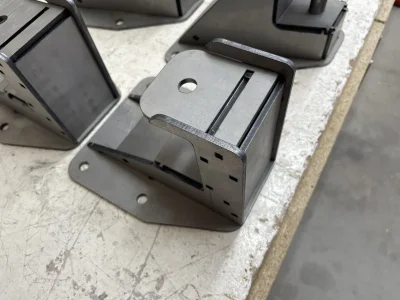

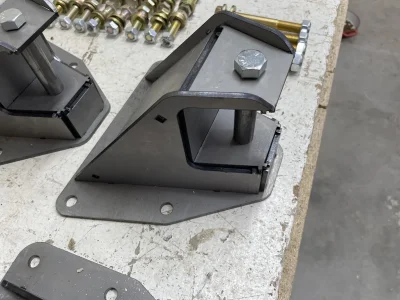

This is a tab and slot style weld it yourself spring hanger kit for 73-79 Ford F100 trucks with 2.5" wide springs (3" bushing width). It will fit other trucks with straight frame rails however the spring offset from the frame may not be correct and you will have to drill holes. F100 trucks will require that the factory hangers holes are opened up for a 1/2 bolt. This kit requires welding. Includes proper shanked grade 8 bolts. Spring hangers are laser cut from .188 3/16 HRPO mild steel.

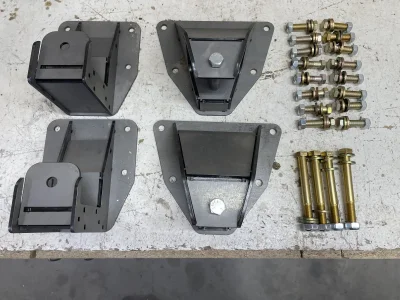

Includes the following:
(2) front spring hanger WIY plate kits
(2) rear spring hanger WIY plate kits
(1) 3" long welding spacer
(16) grade 8 1/2-20 fine thread bolts
(16) grade 8 1/2-20 "stover" lock nuts
(32) grade 8 SAE thick washers
(4) 9/16-18 grade 8 leaf spring bolts
(4) 9/16-18 grade 8 "stover" lock nuts
(16) 9/16 grade 8 SAE thick washers

I'm located in Mohave Valley, AZ, 86440 but I can and will ship these.

$400 each.


Attachments

  • IMG_6869.jpeg
    286.8 KB · Views: 12
  • IMG_6865.jpeg
    373.4 KB · Views: 12
  • IMG_6866.jpeg
    224.8 KB · Views: 11
  • IMG_6868.jpeg
    341.7 KB · Views: 11
  • IMG_6867.jpeg
    302.3 KB · Views: 11
  • IMG_6864.jpeg
    508.8 KB · Views: 12
Thats a great looking kit, for a good price. Unfortunately i cant afford this, but how about some frame to edge of bushing mounting surface for people to check fitment for other vehicles.
