02 Montery Dakar build / final stages

[turbomonty]

trying to get the motor running this weekend
2010 mercury milan 3.0l duratec with GT3582 turbo

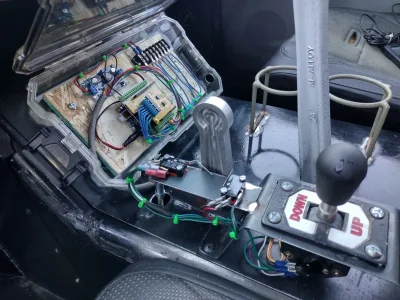

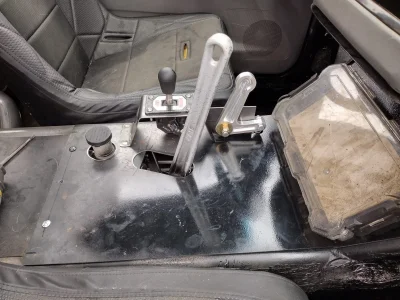

after it runs i can wire up my trans. 6hp26 and arcade paddle shifter via Arduino

for now i am rhino lining the front with a can of rustoleum



[Turboyota]

Perfect! Glad you’re here!!



[turbomonty]

Thanks for the invite



[turbomonty]

FYI 2010 Toyota sienna coil on plug fit right on a ford 3.0l duratec
tested at 10K on the Arduino!
cant trust the colors china put on the pigtails at all though



[JACKSONRALLYINC]

Just remember, electricity knows no color



[turbomonty]

this is about as good as i get
put the individual powers to the coils on the right and injectors on the left.
the fuse blocks are oriented to the v6
when/if one melts down to china i can see what cylinder it is
still need to get some grommets.....



[JACKSONRALLYINC]

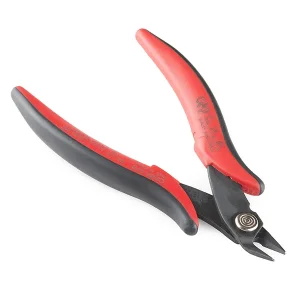

Flush cuts my friend, get some flush cuts for those cable tie tails.



[turbomonty]

i am running with a close to zero budget on this
what are they?



[turbomonty]

you mean cutters?
i have some of these



[the bodj]

Yes, those. Use them haha



[turbomonty]

i like danger



[turbomonty]

oh jeez my exhaust guy really dun it now



[turbomonty]

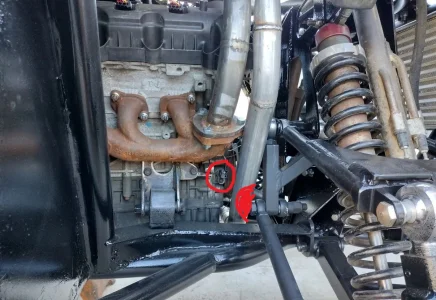

crank sensor is getting hotter by the minute in this maze of pipe
need to make about an inch or more of clearances to clear the tie rod end



[Kellyex1450]

Flush cuts my friend, get some flush cuts for those cable tie tails.

I tell the guys at work if you don't use flush cutters you leave flesh cutters.



[Turboyota]

Fuck it. Route the exhaust out the hood.



[turbomonty]

made a wire frame to hold the fans
the plastic shroud was a couple inch's too thick to clear pretty much anything in the car
if i get bored some day i might make a more engineered shape



[turbomonty]

luckily i am almost out of parts to throw under the hood
she is packed in tight!
still super easy to work on any piece. just need the step stool



[turbomonty]



[turbomonty]



[turbomonty]

got the muffler mounted in a tight little corner
poked right out the shark fin
maybe 3/4" tire clearance
trailing arm 56% chance of rub at full crush
moving on....
