1980-96 Ford truck rear tank conversion brackets

85Yota

Well-known member
Joined
Apr 5, 2022
Messages
934
OK so I'm selling the bronco tank conversion brqckets I made to run a single rear bronco gas tank in my 95 f150 to link the truck.

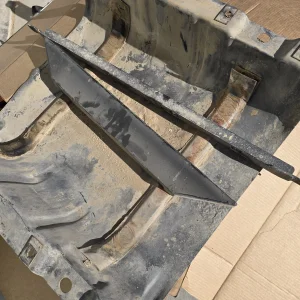

What you get is the 2 brackets to install a bronco 33 gal gas tank in place of rear 16 gal fuel tank and spare tire. I recommend a tank same year as your truck since older is carb, then 86-89 lift pump in tank to high pressure on frame. 90-96 is single high pressure pump in tank.

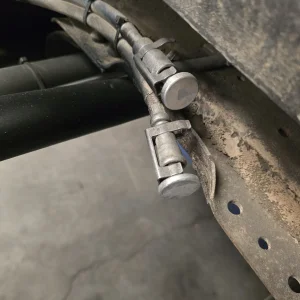

I did this so I could 4 link my truck and ditch front gas tank. I did that by installing these billet fuel line plugs I got from ebay and zip tie them out of the way.

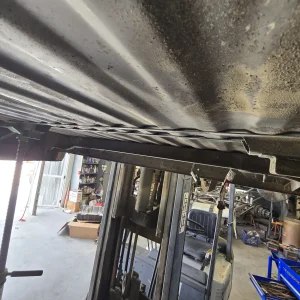

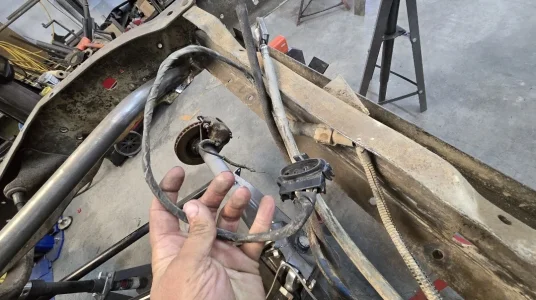

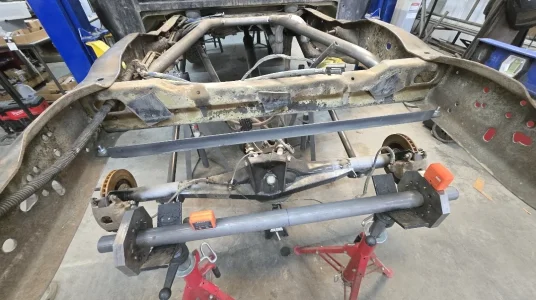

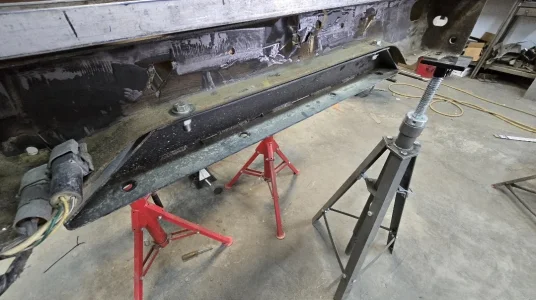

The front crossmember will require 2 new holes on the frame at 2-3/4' back from rear of crossmember. I set that new crossmember on the frame measured and got it square. Then centerpiece and drilled holes then loosely bolted that in. Then bolt in rear conversion brwcket loosely. Then install the tank with factory skid and all bolts. Then tighten them all up. Install fuel line and vent line. Plug in the wiring conversion harness you made for your bronco tank to truck wiring harness. Now the modifications i had to do to the bed was cut the 2nd crossmember from the back flush to bottom of the bed floor between the frame rails. Then everything bolts right back on as it did stock.

$120 pickup or $140 shipped to you for brqckets and used mounting hardware.

20241006_092639.jpg20241003_165150.jpg20241004_141526.jpgScreenshot_20240925_090724_Photos.jpgScreenshot_20240925_090731_Photos.jpgScreenshot_20240925_090745_Photos.jpg
